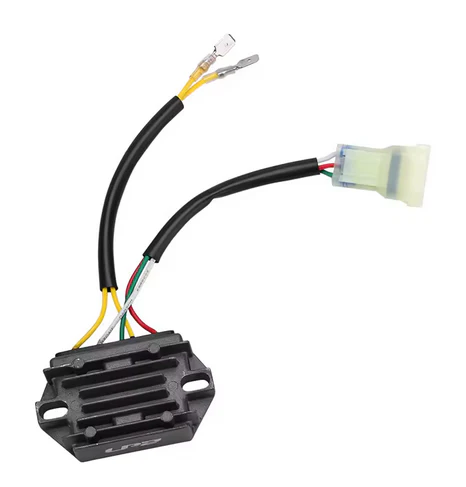

This voltage regulator provides consistent 12V output and stable performance for motorcycle electrical systems under varying loads. Built to OEM specifications, it is designed as a direct replacement part and tested to ensure reliability before shipping.

Features

• Matches or exceeds OEM quality


• Designed for direct OEM replacement


• Fits stock mounting locations


• Engineered to handle increased power loads


• Made to OEM specifications, matching the original equipment in appearance


• All electrical parts are fully factory tested before shipping


• Note: No returns on electrical parts

Specifications

• Voltage: 12


• Polarity: Negative


• Adjustable: False


• Dimensions: Rectifier 75mm L x 45mm W x 22mm T


• Plug: (1) Green, (1) White, (1) Red – 7 inches long


• Wires: (2) Yellow with 6.4mm male spade connectors – 160mm long


• Mounting: (2) 6.4mm x 11.3mm slotted mounting holes on 53.3mm centres

Cross-Reference OEM Part Numbers

• REG 2569


• ARROWHEAD 230-58226


• AKM6002


• KTM 77211034000


• KTM 77311034000

Vehicle Fitments

• KTM 250 SX-F Factory Edition (2015–2017)


• KTM 450 SX-F Factory Edition (2012–2017)


• KTM 250 SX-F Roczen Replica (2012)


• KTM 250 SX-F Musquin Replica (2011–2017)


• KTM 350 SX-F Cairoli Replica (2011–2012)


• KTM 350 XC-F (2011–2017)


• KTM 350 SX-F (2011–2017)


• KTM 250 XC-F (2011–2017)


• KTM 250 SX-F (2011–2017)


• KTM 450 SX-F (2011–2017)


• KTM 450 SMR (2010–2014)
