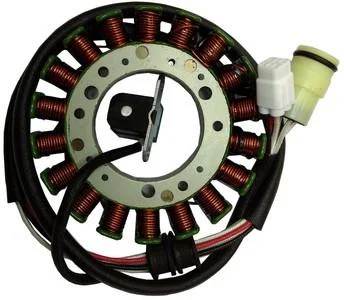

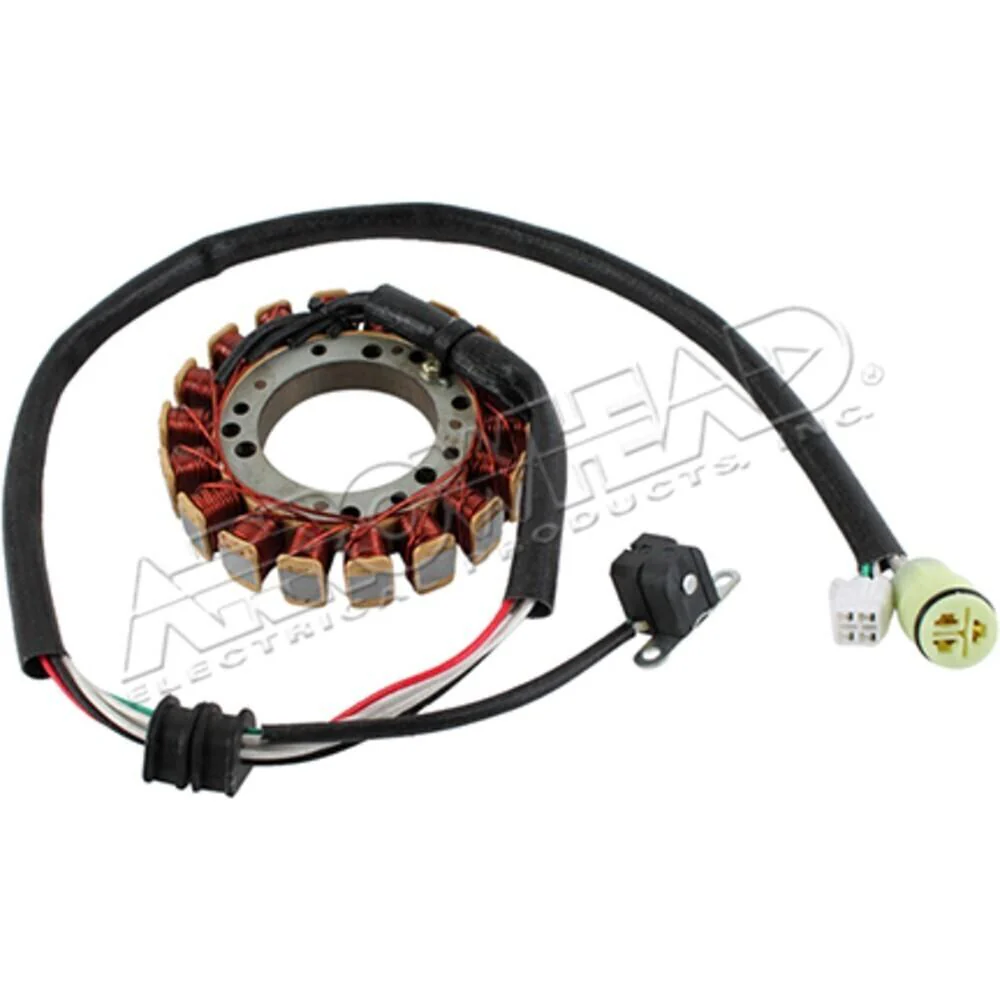

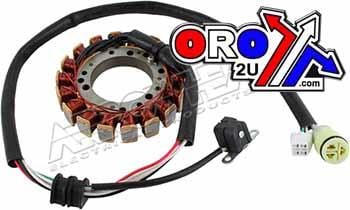

This high-quality stator coil is a direct OEM replacement designed for Yamaha models, ensuring reliable performance and durability. Engineered to meet or exceed OEM standards, it is built to handle increased power loads and is factory-tested for 100% reliability. Ideal for replacing worn or damaged components, this stator provides excellent value and consistent operation.

Technical Specifications:

• Voltage: 12V


• External Diameter (OD): 115.1mm


• Internal Diameter (ID): 53.7mm


• Width (OD): 23.3mm


• Width (ID): 9.7mm


• Power Coils: 18


• Mounting Holes: 3 (6mm)


• Pick-Up Resistance: 430 Ohm


• Cord Lengths: 29 inches (2 plugs) / 5.5 inches (to grommet)


• With Sensor: Yes

Features:

• OEM Quality: Meets or exceeds original specifications.


• Direct Replacement: Ensures seamless installation.


• Factory Tested: 100% tested for reliability and performance.


• Increased Power Load Capacity: Designed for demanding applications.


• Reliable Performance: High-quality replacement with satisfaction guarantee.


• Important Note: Electrical parts are non-returnable. Verify images and connection plugs before ordering.

Cross Reference Numbers:

5GH-81410-00-00, 5ND-81410-00-00, 1-968H RICKS, 5KM-81410-00-00, 5KM-81410-01-00

Compatible Yamaha Models:

• Grizzly YFM660 (2002-2004)


• Grizzly YFM66 (2005-2008)


• Rhino YXR660 (2004-2007)


• Kodiak 400 (2000-2006)


• Kodiak 450 (2003-2006)


• Grizzly 400 (2007-2008)


• Grizzly 450 (2007-2011)


• Wolverine 450 (2007-2010)


• YXR66F Rhino (2004-2007)

Part Number: 44-9752.AH
