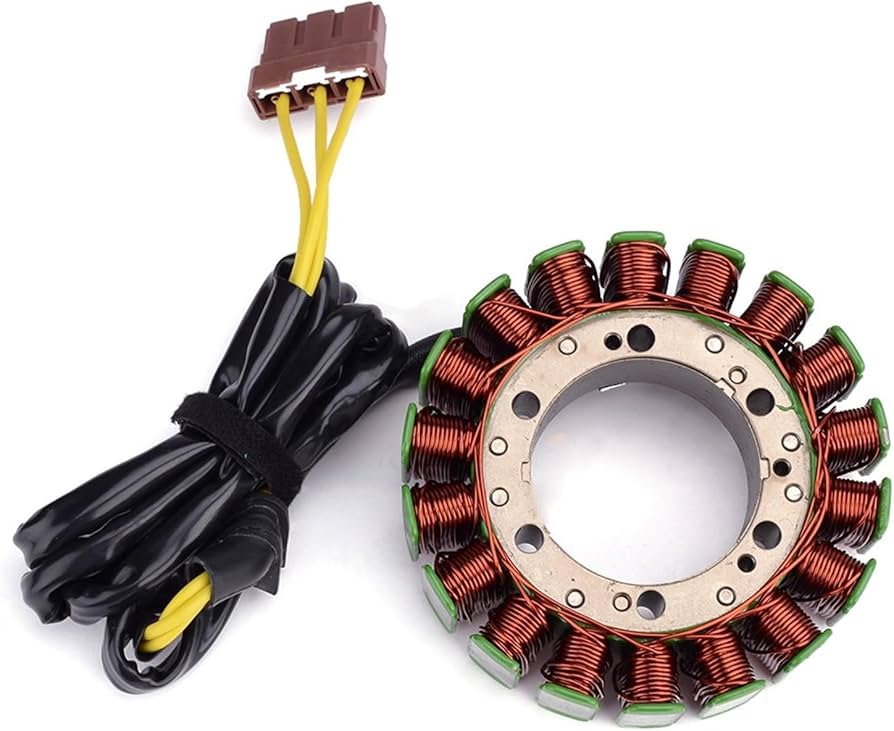

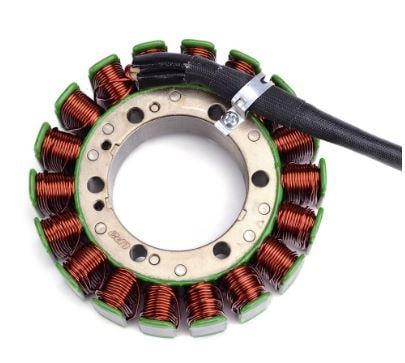

STATOR COIL APRILIA RSV ETV 1000 R 268304 AP0685330
The stator coil is a direct OEM replacement component designed for specific Aprilia motorcycle models. It functions as a crucial part of the motorcycle's charging system, converting mechanical energy into electrical energy to power the vehicle's electrical components and charge the battery.
Features:
- Direct OEM replacement
- Designed to handle increased power loads
- Meets or exceeds OEM quality standards
Specifications:
- Function: Converts mechanical energy into electrical energy for the motorcycle's electrical system
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Wire to wire resistance: Yellow to yellow = 0.4 ohms ±20%
Dimensions:
- Interior diameter: 55 mm
- Exterior diameter: 115 mm
- Thickness: 24 mm
Wire lengths:
- Stator to grommet: 100 mm
- Grommet to plug: 950 mm
Vehicle Fitment:
- Aprilia RSV1000R: 2004–2008
- Aprilia RSV1000 Tuono: 2006–2009
- Aprilia ETV1000 Caponord ABS: 2001–2009
- Aprilia ETV1000 Caponord Rally Raid: 2003–2006
- Aprilia RST1000 Futura: 2001–2004
- Aprilia RSV1000R Factory (RRK0): 2006–2010
- Aprilia RSV1000R (RR00): 2004–2010
- Aprilia RSV1000 Tuono R Factory (RRM00): 2007–2011
Cross-Reference OEM Part Numbers:
- 268304
- AP0685330
