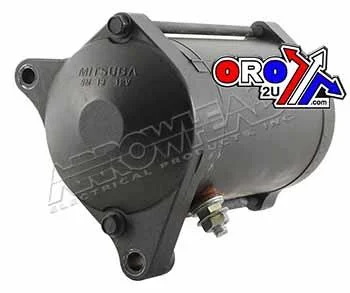

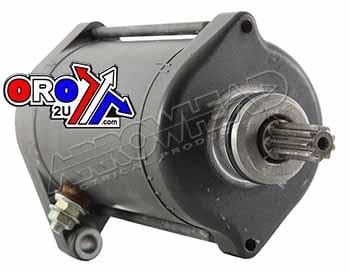

STARTER MOTOR YAM XVS13, ARROWHEAD SMU0447, 410-58112, YAMAHA XVS13A 1300cc V-STAR M/C 2007-2009, XVS13CT 1300cc V-STAR M/C 2007-2009
Starter motor designed for Yamaha XVS13A and XVS13CT 1300cc V-Star motorcycles, model years 2007-2009. Engineered for performance, it features a Permanent Magnet Direct Drive (PMDD) system with precision specifications for reliable operation and durability.
Features:
- Permanent Magnet Direct Drive (PMDD) system.
- 12-volt operation.
- Clockwise rotation.
- 9-spline gear design.
- Unthreaded mounting holes for easy installation.
- Sturdy 6mm x 1.0 B+ stud connection.
Specifications:
- Gear Outer Diameter: 11.4mm (0.449").
- Registration Outer Diameter: 28.7mm (1.130").
- Overall Length: 178.8mm (7.039").
- Mount Hole 1 Diameter: 6.6mm.
- Mount Hole 2 Diameter: 7.3mm.
- Mounting Ear Distance: 184.1mm (13.311").
- Center-to-Center Distance: 84.1mm.
Cross-Reference OEM Part Numbers:
- 3D8-81890-00-00
- 410-58112
Compatibility:
- Yamaha Motorcycle 2007-2009 XVS 1300 V-Star.
- Yamaha Motorcycle 2007-2009 XVS 1300 A V-Star Tourer.
- Yamaha Motorcycle 2007-2009 XVS 1300 CT V-Star Tourer.
Part Number: SMU0447
