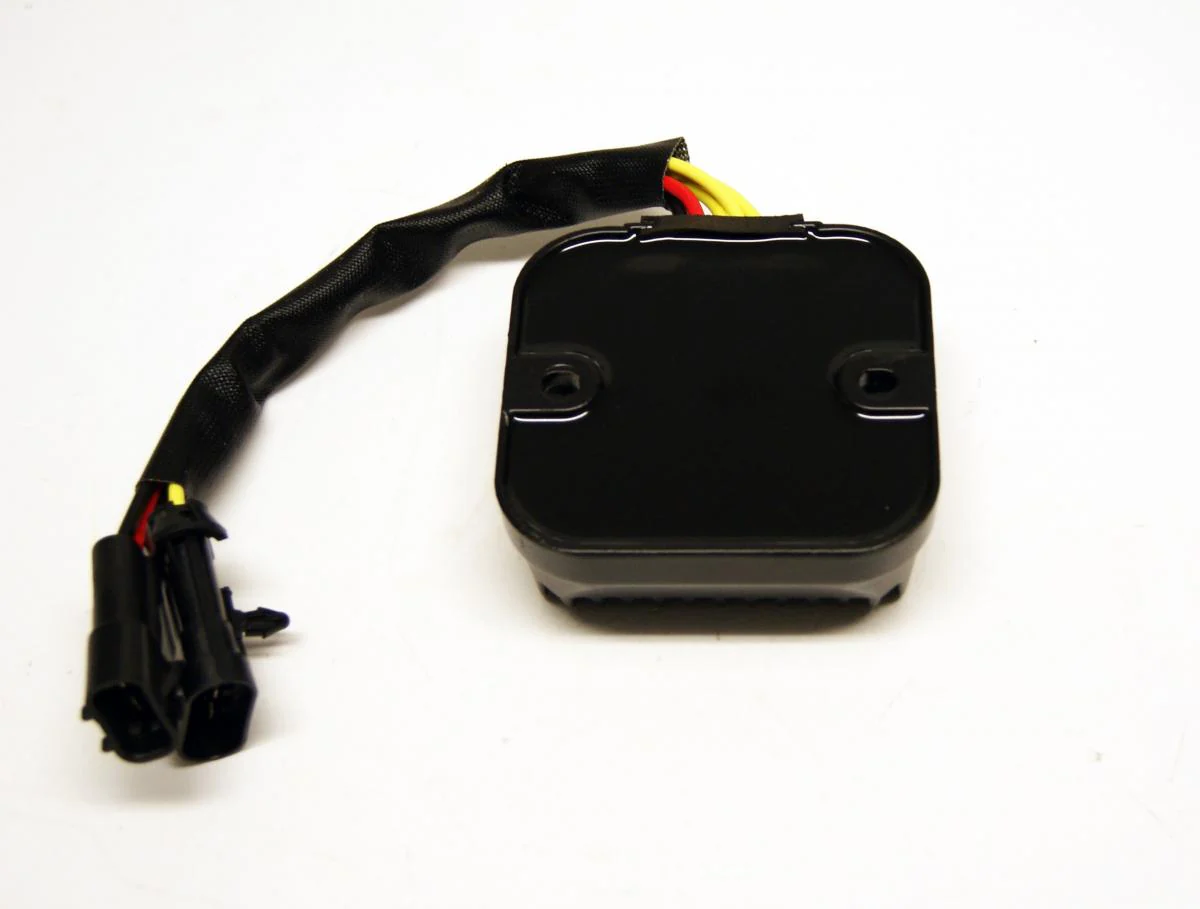

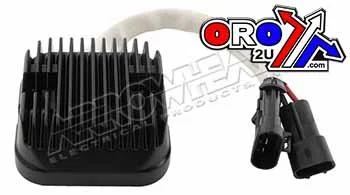

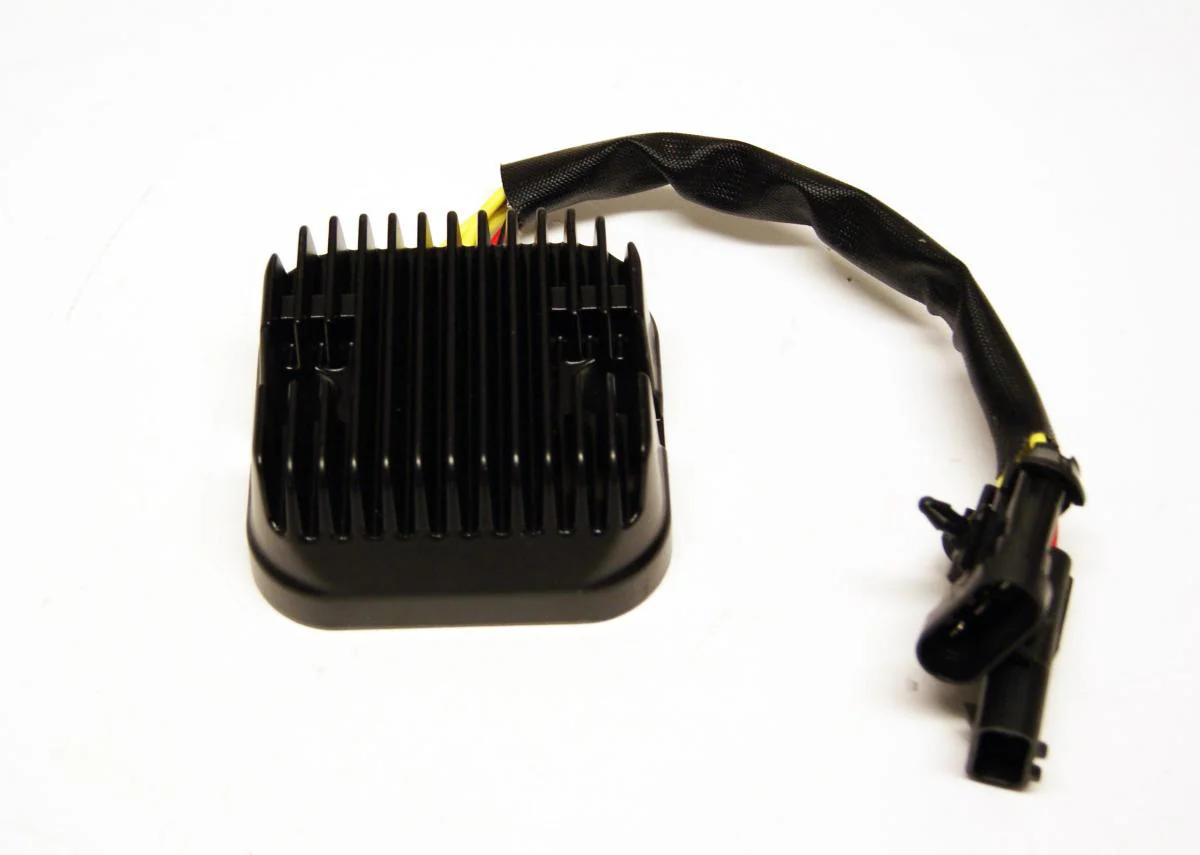

The DZE Racing Voltage Regulator Rectifier is designed for various Polaris models, including the RZR 4 900, RZR 1000 XP Turbo, and Ranger XP 900 from 2013 to 2016. It regulates the voltage and ensures the proper functioning of the ATV's electrical system. Built to meet or exceed OEM standards, this regulator rectifier is a direct replacement and is factory tested for 100% reliability.

Featuring MOSFET technology, this unit provides efficient power conversion with a 12V output and a current rating of 50A. Its durable construction ensures reliability, and it is designed to handle high power loads.

Features:

• Voltage: 12V


• Current: 50A


• Input Type: Three-Phase


• Output Type: DC


• Technology: MOSFET


• Factory tested for 100% reliability


• Meets or exceeds OEM quality standards


• Designed to handle high power loads

Specifications:

• Dimensions: 111mm L x 111mm W x 50.5mm H


• Pitch: 82mm


• Mounting Holes: 91.5mm (Outer), 72.6mm (Inner)

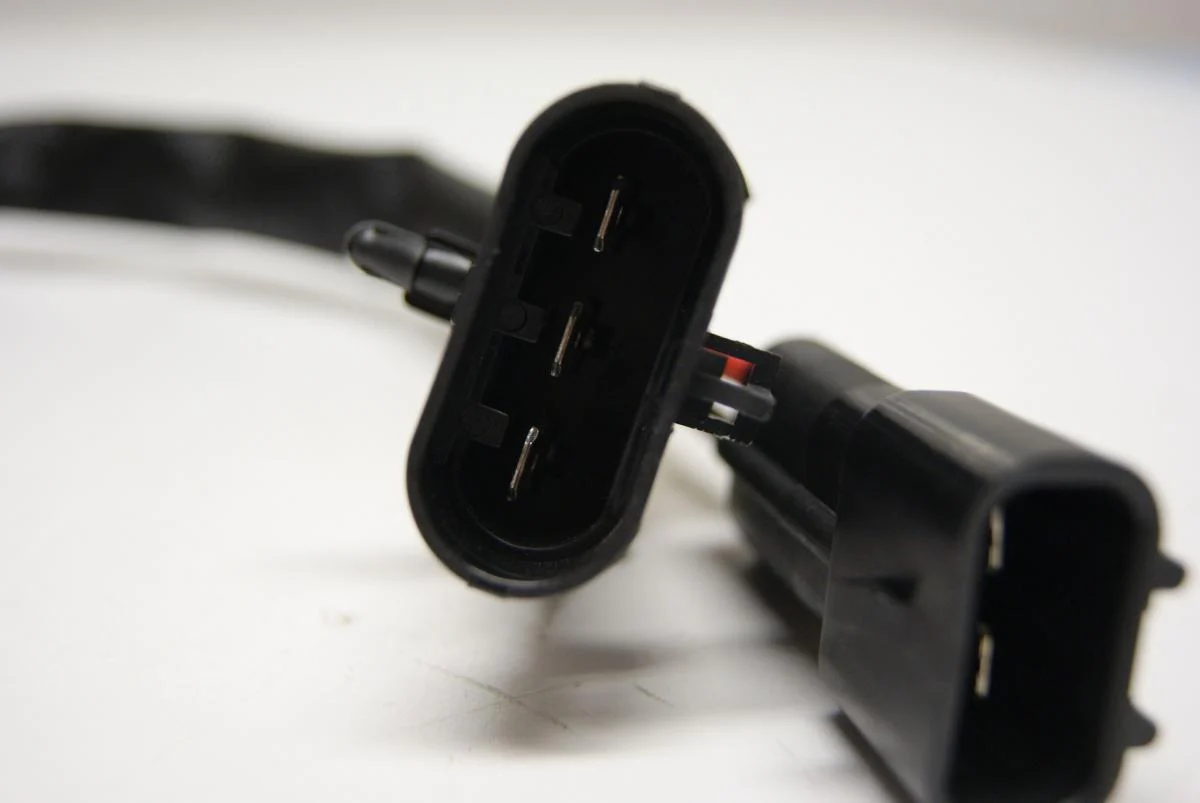

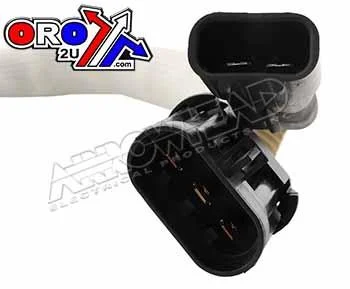

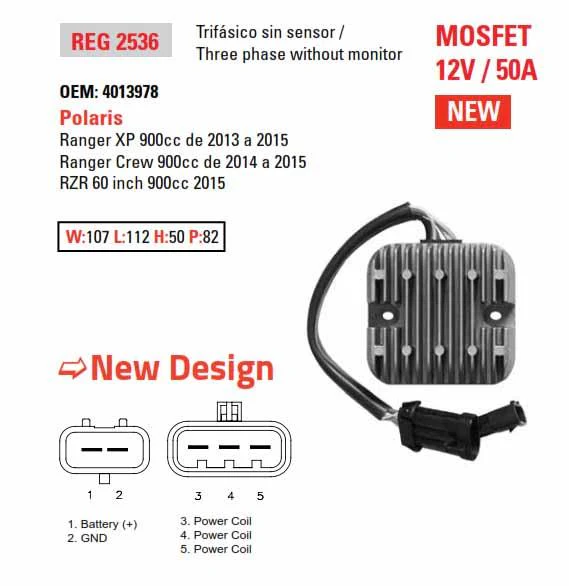

• Plug #1: (3) Yellow Wires (Charging Coil), 11.25 Inches OAL

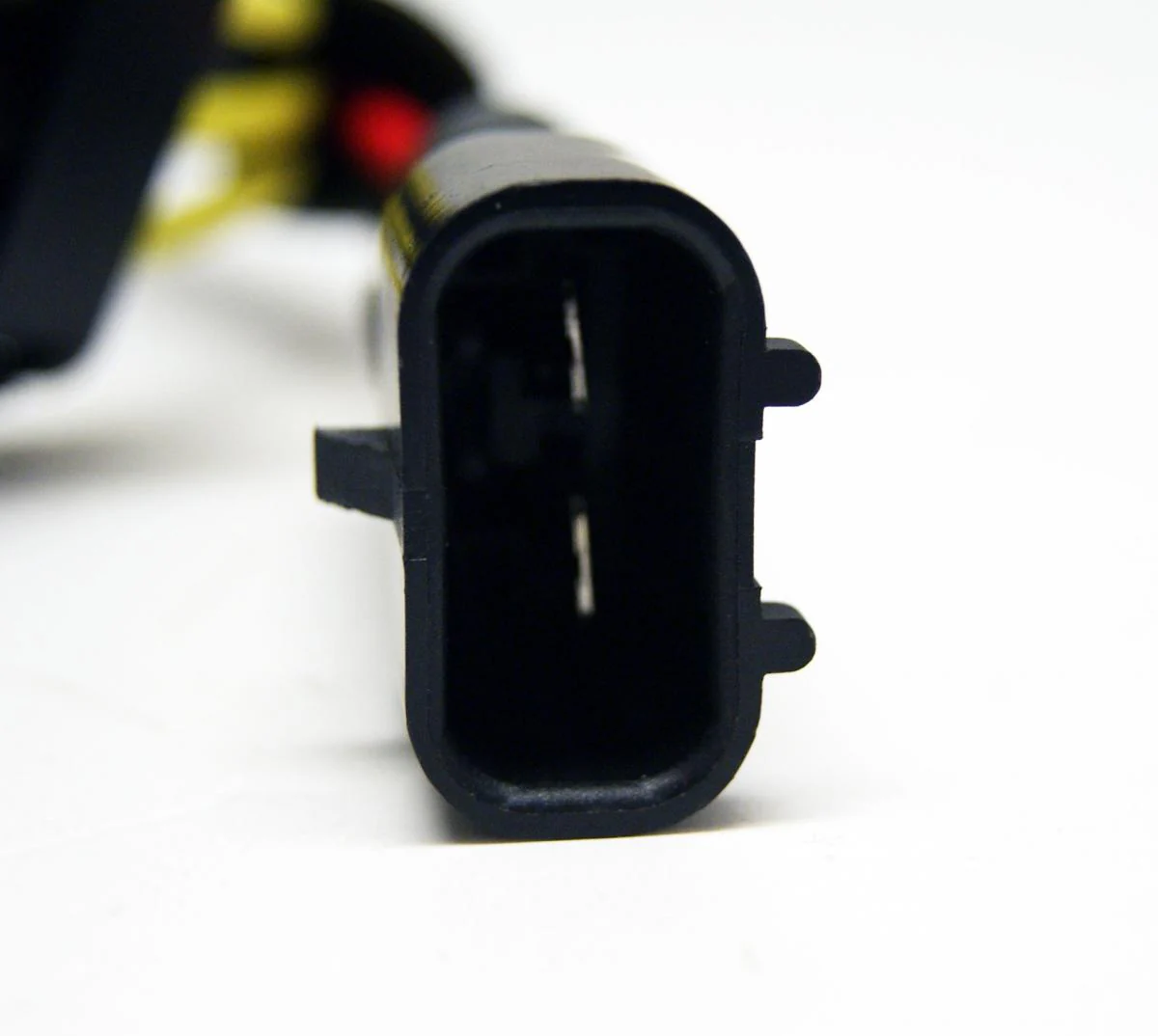

• Plug #2: (1) Red, (1) Black Wire, 11.25 Inches OAL

Cross-Reference OEM Part Numbers:

• APO6036


• ESP2536


• 230-22219 J & N


• 4013978
