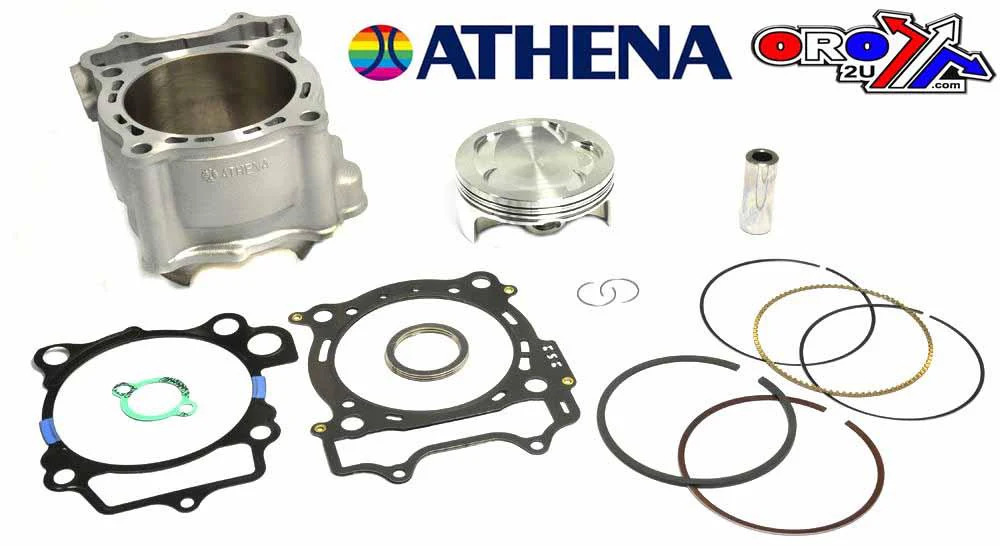

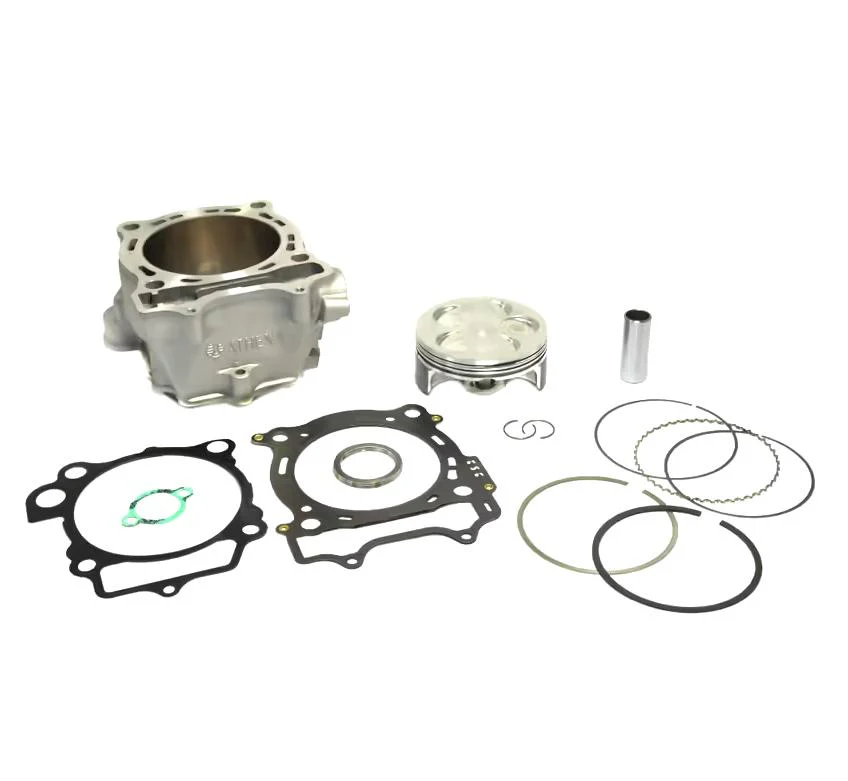

This standard bore cylinder kit is a complete top-end replacement set designed to match original equipment performance for 450 cc applications. It includes a lightweight aluminium cylinder with a nickel-silicon wear-resistant coating, a piston assembly, and all required gaskets, and is designed to install without modifications to the engine crankcase.

Features

•


  Standard bore cylinder kit intended to match original equipment performance





•


  Wear-resistant nickel-silicon cylinder coating for smooth operation and reduced wear





•


  Piston design intended to reduce friction





•


  Includes cylinder, piston, piston pin, piston rings, and full gasket set





•


  Designed for installation without engine crankcase modifications





•


  Developed and validated through bench and road testing





•


  Must be used in accordance with applicable national regulations; manufacturer accepts no responsibility for improper use




Specifications

•


  Manufacturer part number: P400485100046





•


  Bore diameter: 95.00 mm





•


  Displacement: 450 cc





•


  Compression ratio: 11.4:1





•


  Net weight: 1.21 kg





•


  Cylinder material: aluminium





•


  Cylinder coating: nickel-silicon (Motor-Nicksil)




Cross-Reference OEM Part Numbers

•


  S4F09500012A





•


  S4F09500012B





•


  P400485160012





•


  S41316023




Vehicle Fitments

•


  YAMAHA YFZ BILL BALANCE EDITION 450 cc (2010–2025)





•


  YAMAHA YFZ R 450 cc (2009–2013)





•


  YAMAHA YFZ R BLUISH WHITE/DEEP PURP.SOLID/BLACK 450 cc (2009–2025)





•


  YAMAHA YFZ R SPECIAL EDITION 450 cc (2010–2013)





•


  YAMAHA YFZ X 450 cc (2010–2011)





•


  YAMAHA YFZ X SPECIAL EDITION 450 cc (2011–2025)
