CONNECTING ROD YZF250 16-20, WOSSNER P4072 CONROD KIT
YAMAHA
YZF250 2014-2018,

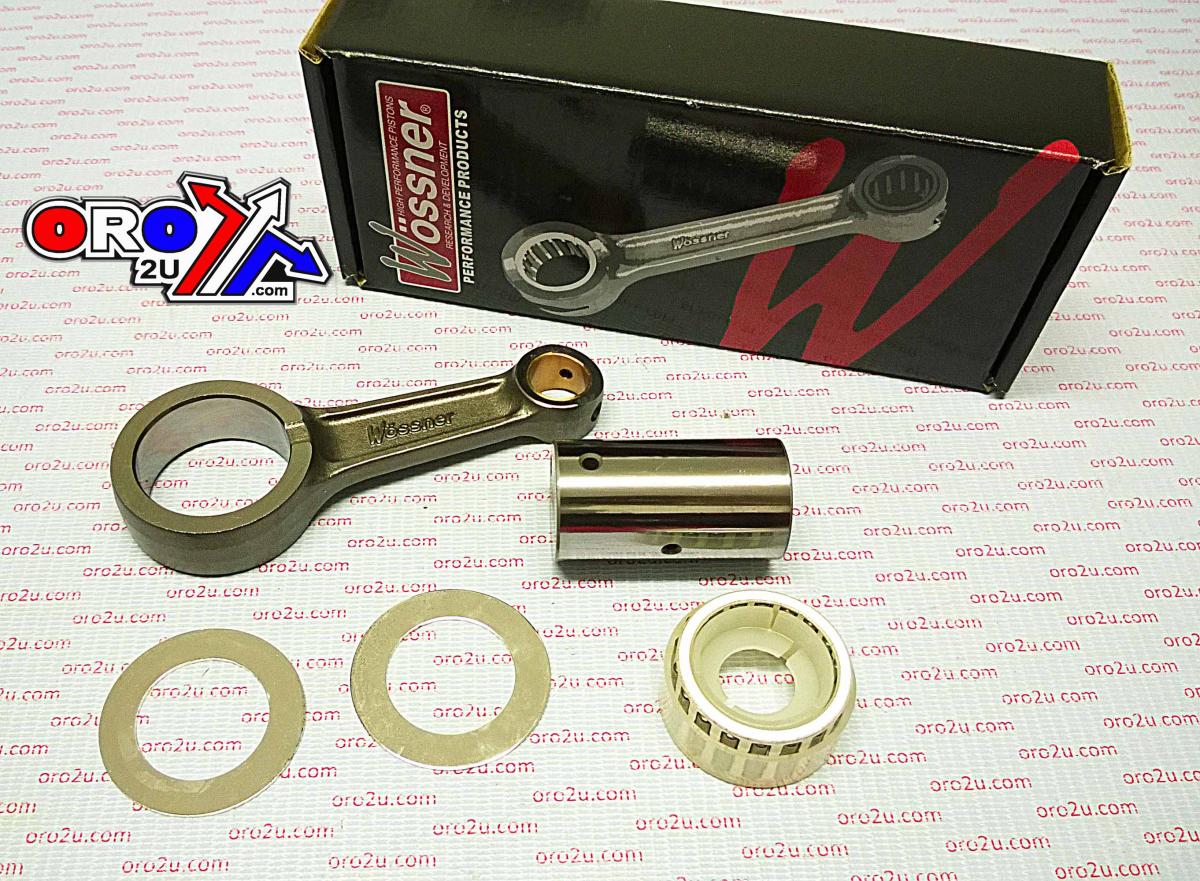

WOSSNER P4072 CONNECTING ROD KIT, CONROD
Wossners forged high performance connecting rods provide the highest quality for maximum performance and reliability.
The connecting rods are made of the best material which is CNC machined to remove all surface imperfections. The rods are then machined to final size and has then been shot- peened to achieve the ultimate in strength and durability.
Made in Germany.
|
SIZE |
MM |
|
Centre 2 Centre |
92.50 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
16 |
|
Small End Width |
15 |
|
Big End Bearing |
30x38x17.7 |
|
Big End Bore Ø |
38 |
|
Big End Width |
18 |
|
Big End Pin Ø |
30 |
|
Big End Pin Length |
54.80 |
| Washer Thickness |
None |
Weight 195gr.
Part No. 56-2999.WO (oro2u.com)
Cross reference numbers ONLY.
P4063, 56-2968.WO, RY-2222, 5UL-11651-00-00 5XC-11651-00-00, 1SM116510100, 1SM-11651-01-00, HOTRODS 8706, PROX 03.2414, WOSSNER P4063, 1SM-11651-00-00, ATHENA P40321021
S/SEED FROM 56-2968.WO TO 56-2968.WO.2
