CONNECTING ROD DT250/360, MAZZUCCHELLI BCO0532A, 311-11651-01
YAMAHA DT2, RT2 DT250A 1974 / DT360 ,

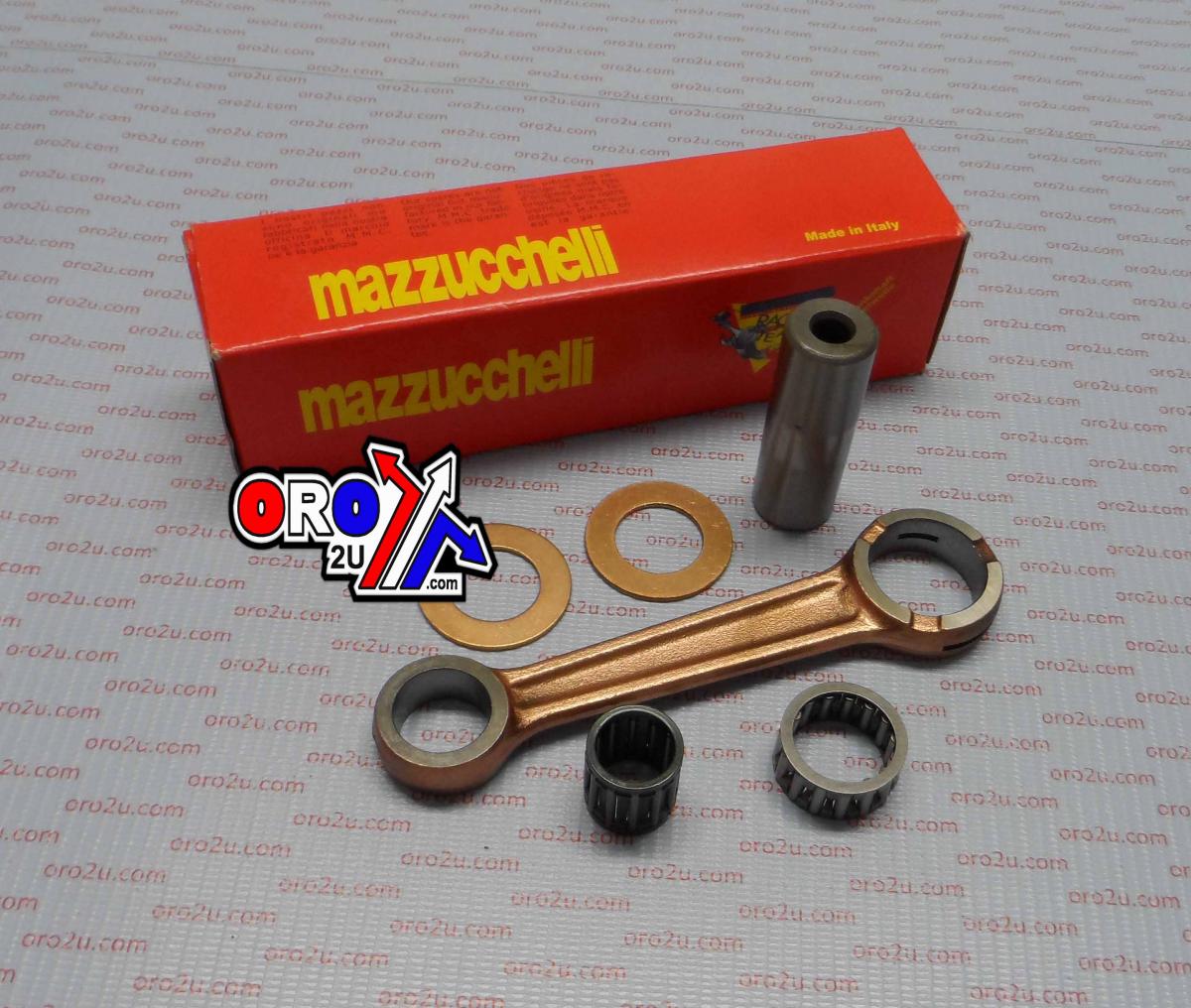

CONNECTING ROD KIT NOVA MAZZUCCHELLI BCO0532A

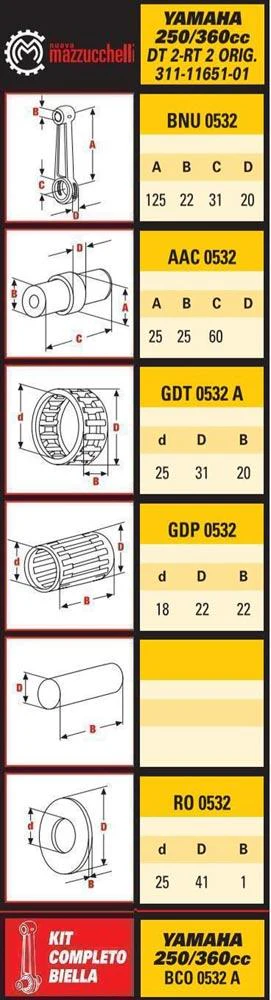

SEE IMAGE FOR KEY. SIZE. A 125mm, B 18mm, C 25mm, D 20mm, E 20mm, F 60mm
|
SIZE |
MM |
|
Centre 2 Centre |
125 |
|
Small End Bearing |
18x22x22 |
|
Small End Bore Ø |
22 |
|
Small End Width |
20 |
|
Big End Bearing |
25x31x20 |
|
Big End Bore Ø |
31 |
|
Big End Width |
20 |
|
Big End Pin Ø |
25 |
|
Big End Pin Length |
60 |
|
Washer Thickness |
25x41x1 |
Cross reference numbers ONLY.
311-11651-01
DT250A 1974 250 DT250 Dual Purpose
DT2MX 1972 250 DT2MX Dual Purpose
RT2MX 1972 360 RT2MX Off-Road
TY250A 1974 250 TY250 Trials
Cross reference numbers ONLY.
YAMAHA YZ250 1978-1982 [must also buy 25x63 crank pin] Big End Bearing 25x31x20
S/SEED FROM 56-931 TO 56-154.MA
Product Information
Product Information
Shipping & Returns
Shipping & Returns
CONNECTING ROD DT250/360, MAZZUCCHELLI BCO0532A, 311-11651-01
CONNECTING ROD DT250/360, MAZZUCCHELLI BCO0532A, 311-11651-01
YAMAHA DT2, RT2 DT250A 1974 / DT360 ,
CONNECTING ROD KIT NOVA MAZZUCCHELLI BCO0532A
SEE IMAGE FOR KEY. SIZE. A 125mm, B 18mm, C 25mm, D 20mm, E 20mm, F 60mm
|
SIZE |
MM |
|
Centre 2 Centre |
125 |
|
Small End Bearing |
18x22x22 |
|
Small End Bore Ø |
22 |
|
Small End Width |
20 |
|
Big End Bearing |
25x31x20 |
|
Big End Bore Ø |
31 |
|
Big End Width |
20 |
|
Big End Pin Ø |
25 |
|
Big End Pin Length |
60 |
|
Washer Thickness |
25x41x1 |
Cross reference numbers ONLY.
311-11651-01
DT250A 1974 250 DT250 Dual Purpose
DT2MX 1972 250 DT2MX Dual Purpose
RT2MX 1972 360 RT2MX Off-Road
TY250A 1974 250 TY250 Trials
Cross reference numbers ONLY.
YAMAHA YZ250 1978-1982 [must also buy 25x63 crank pin] Big End Bearing 25x31x20
S/SEED FROM 56-931 TO 56-154.MA
Original: $196.00
-65%$196.00
$68.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
YAMAHA DT2, RT2 DT250A 1974 / DT360 ,
CONNECTING ROD KIT NOVA MAZZUCCHELLI BCO0532A
SEE IMAGE FOR KEY. SIZE. A 125mm, B 18mm, C 25mm, D 20mm, E 20mm, F 60mm
|
SIZE |
MM |
|
Centre 2 Centre |
125 |
|
Small End Bearing |
18x22x22 |
|
Small End Bore Ø |
22 |
|
Small End Width |
20 |
|
Big End Bearing |
25x31x20 |
|
Big End Bore Ø |
31 |
|
Big End Width |
20 |
|
Big End Pin Ø |
25 |
|
Big End Pin Length |
60 |
|
Washer Thickness |
25x41x1 |
Cross reference numbers ONLY.
311-11651-01
DT250A 1974 250 DT250 Dual Purpose
DT2MX 1972 250 DT2MX Dual Purpose
RT2MX 1972 360 RT2MX Off-Road
TY250A 1974 250 TY250 Trials
Cross reference numbers ONLY.
YAMAHA YZ250 1978-1982 [must also buy 25x63 crank pin] Big End Bearing 25x31x20
S/SEED FROM 56-931 TO 56-154.MA
