High-performance Hot Rods connecting rod kit designed for Honda XR400 models. Built to deliver durability and reliability, this kit meets or exceeds OEM specifications, making it a dependable choice for heavy-duty performance and long-term use.

Features:

• Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength.


• Advanced design with side scalloping and vent slots to reduce high RPM bearing race distortion.


• Double-forged rods enhance grain flow and ensure dimensional consistency.


• Shot-peened and double-honed for superior durability under heavy loads.


• Double-drilled small ends improve lubrication and cooling of the wrist pin bearing.


• Silver-coated thrust washers and crank pin bearings for enhanced lubricity.

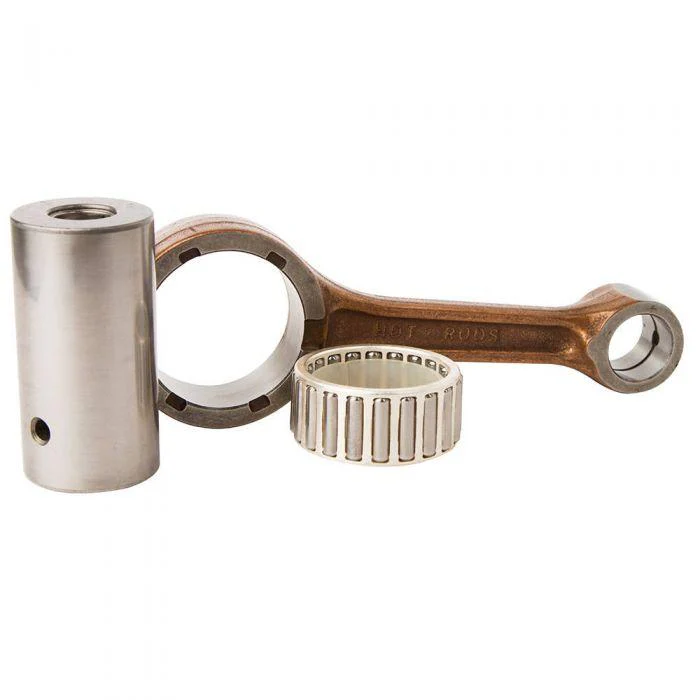

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Big End Bore: 43.00 mm


• Big End Width: Not specified


• Center to Center: 122.60 mm


• Pin Diameter: 34.00 mm


• Pin Length: 65.90 mm


• Small End Bore: 20.00 mm

Cross-Reference OEM Part Numbers:

HONDA: 13000-KCY-670, 13000-KCY-671, 13000-KCY-672

56-890_HR

Compatibility:

• Honda XR400: 1996–2006

Part Number:

8124
