Hot Rods Heavy-Duty Connecting Rod Kit - 8684 is a high-quality replacement designed for Kawasaki KX450F models. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, this kit delivers superior strength and reliability under heavy loads. The advanced design minimizes high-rpm bearing race distortion, and the small end is double-drilled to provide additional lubrication and cooling for the wrist pin bearing.

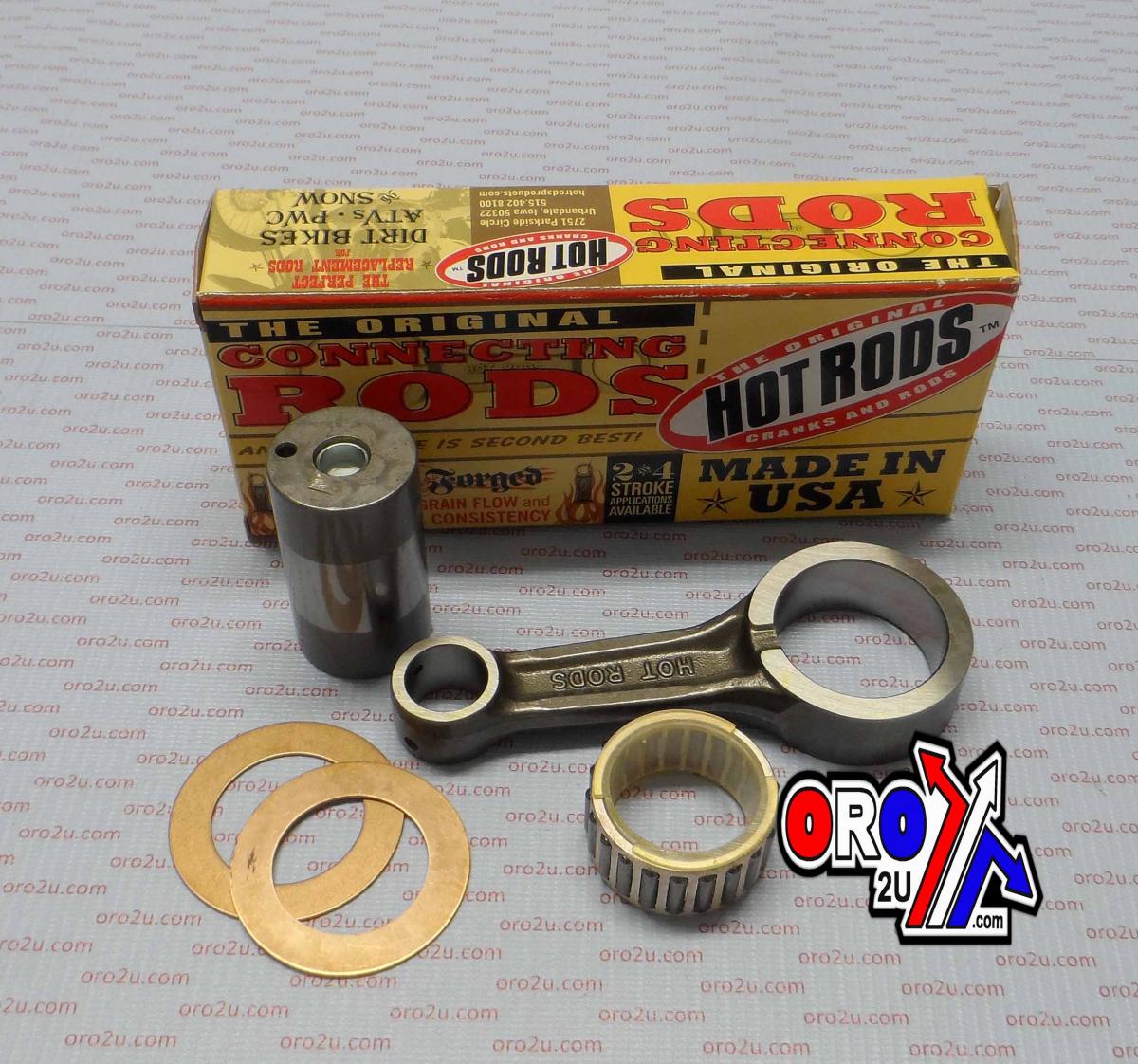

The rods are double-forged for improved grain flow, shot-peened, and double-honed for enhanced durability. Each kit includes a rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Features:

• Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.


• Strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.


• Double-forged for improved grain flow and dimensional consistency.


• Shot-peened and double-honed for superior strength under heavy loads.


• Double-drilled small ends for extra lubrication and cooling to the wrist pin bearing.


• Silver-coated thrust washers and crank pin bearings for added lubricity.


• Complete kit with rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing: 34x42x19.7 mm


• Big End Bore: 42.00 mm


• Big End Width: 19.97 mm


• Center to Center: 101.00 mm


• Pin Diameter: 34.00 mm


• Pin Length: 62.00 mm


• Small End Bearing: No Bushing


• Small End Bore: 19.00 mm


• Small End Width: 18.00 mm


• Washer Thickness: 1 mm

Cross-Reference OEM Part Numbers:

• KAWASAKI: 13032-0067

Vehicle Fitment:

• 2009 Kawasaki KX450F


• 2010 Kawasaki KX450F


• 2011 Kawasaki KX450F


• 2012 Kawasaki KX450F


• 2013 Kawasaki KX450F


• 2014 Kawasaki KX450F


• 2015 Kawasaki KX450F

Part Numbers:

56-2919.HR

56-859.HR
