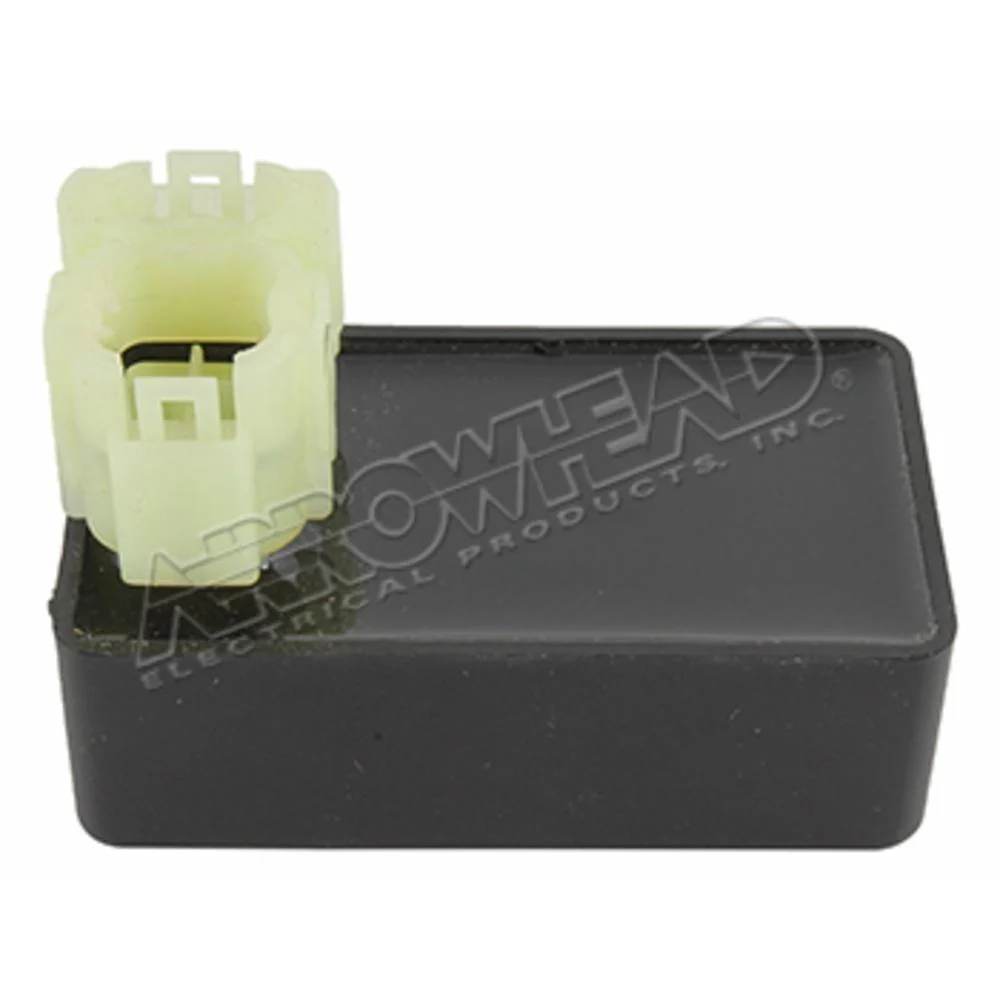

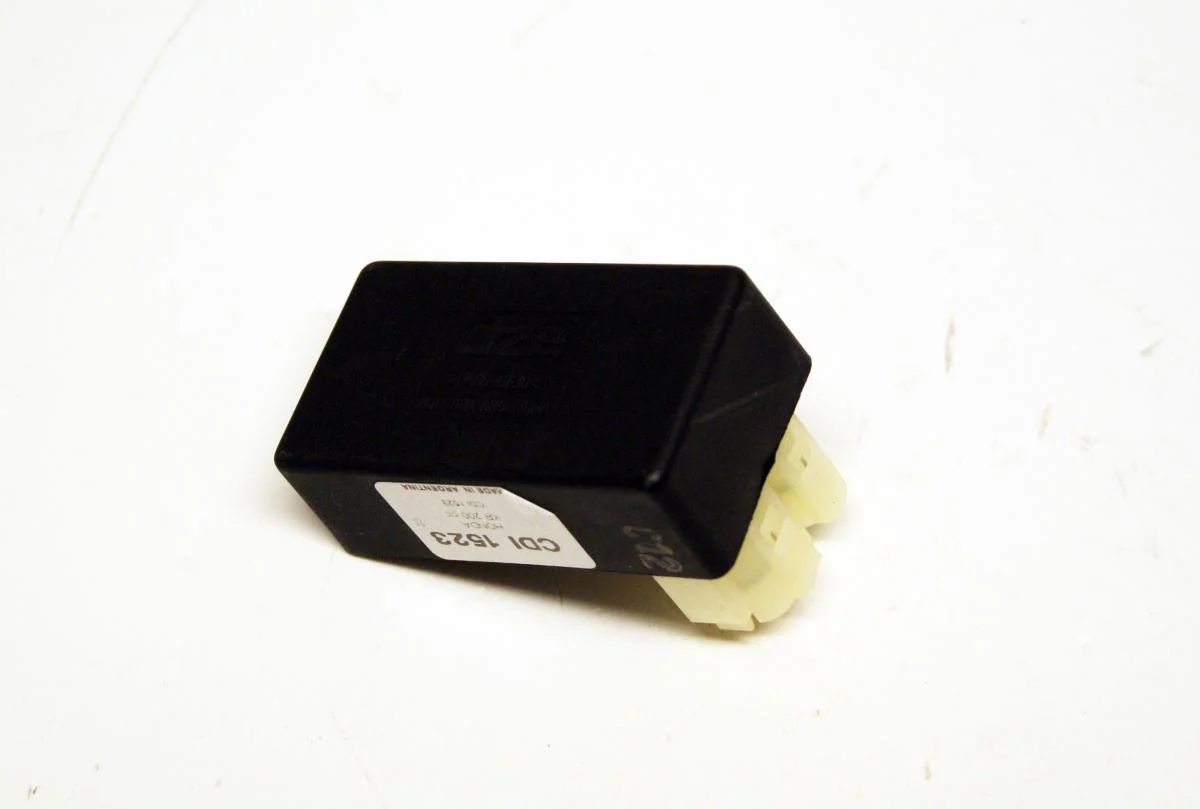

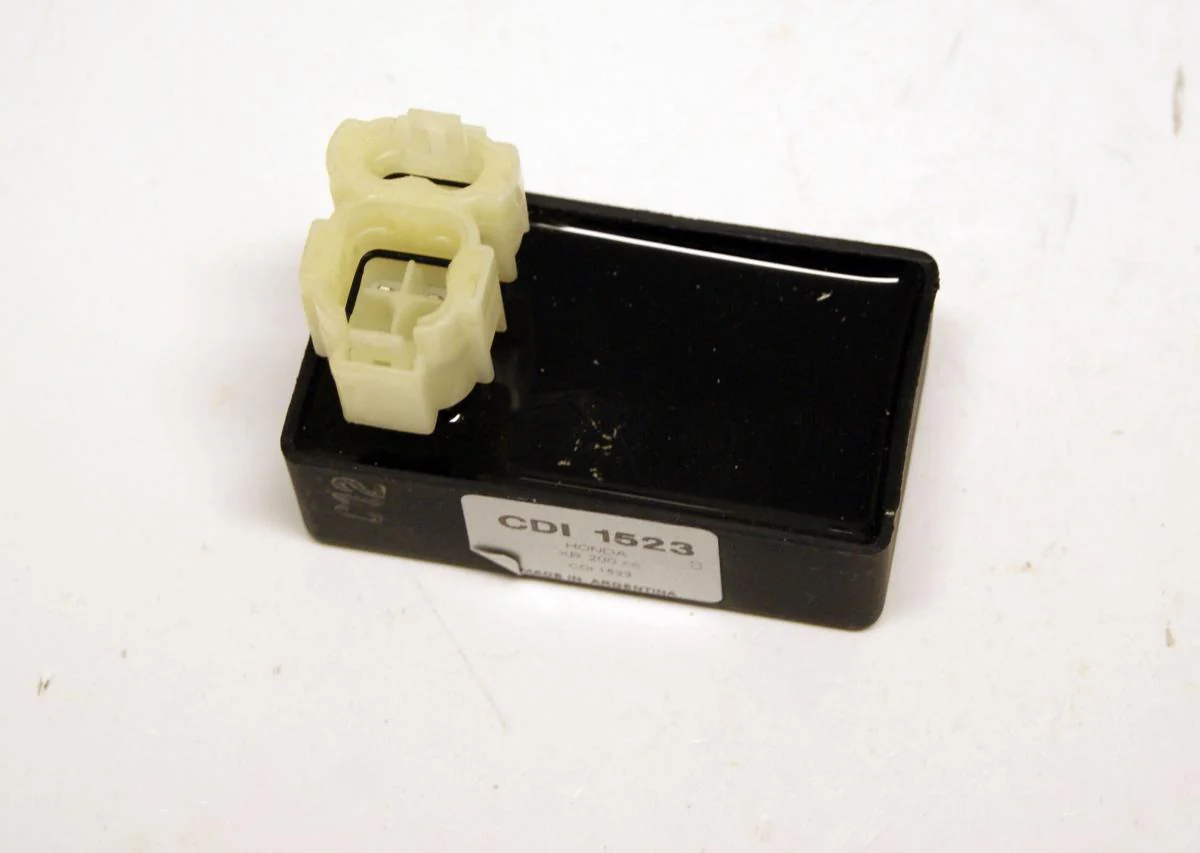

This CDI box is designed as a direct replacement for the ignition system in Honda XR 200R models from 1986 to 2002. It features an electronic advance ignition timing system, powered by an AC coil input and providing one output terminal. With a compact size of 68mm (length), 38mm (width), and 23mm (height), this CDI box is built to meet or exceed OEM quality standards and is tested for 100% reliability. It can handle increased power loads, ensuring optimal performance in your bike. As an aftermarket solution, this CDI box is a high-quality replacement that guarantees customer satisfaction.

Features:

• Direct OEM replacement for Honda XR 200R (1986-2002)


• Electronic advance ignition system (analog type)


• AC coil input with 1 output terminal


• Designed to handle increased power loads for improved performance


• Factory tested for 100% reliability at point of sale


• No returns on electrical parts


• High-quality replacement with a satisfaction guarantee

Specifications:

• Ignition Timing: Electronic advance


• System Type: Analog electronic system


• Input: AC (coil)


• Output: 1 terminal


• Dimensions: 68mm (L) x 38mm (W) x 23mm (H)

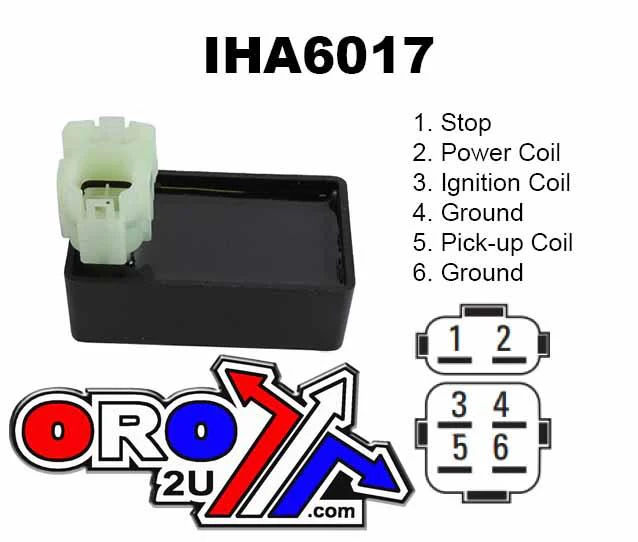

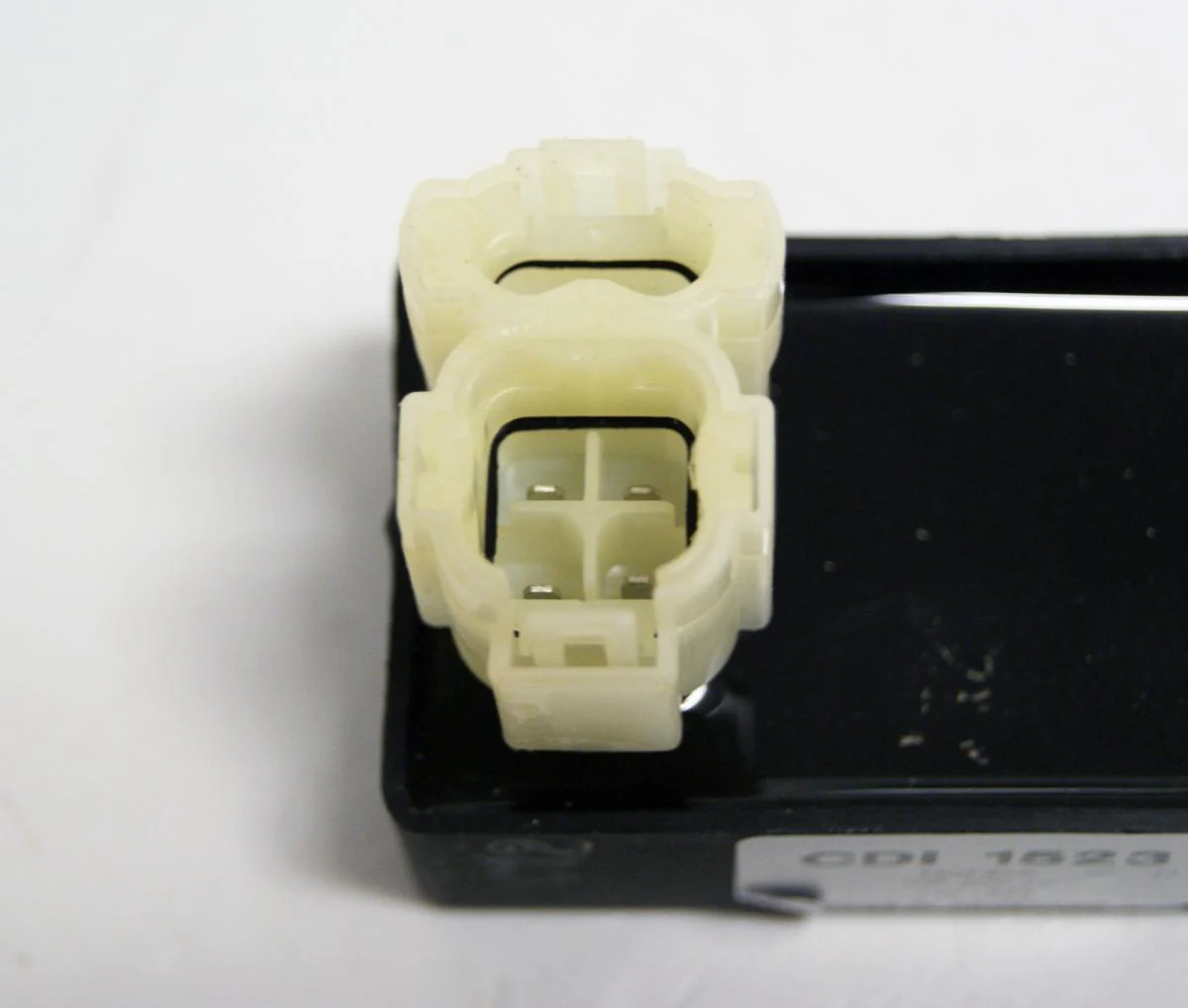

• Number of Terminals: 6


• Enhanced Power: No

Cross Reference Numbers:

• 30410-KBB-901


• CF486A


• CF512F


• IHA6017


• 30410-KT0-670


• 463975 TUCKER ROCKY 46-3975

Part Number: 44-5803
