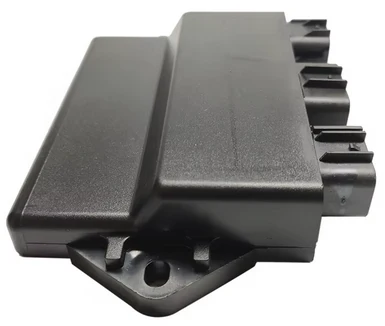

This CDI box is a replacement ignition control unit designed as a direct replacement for the original unit, using the stock mounting locations and matching the original equipment in appearance. It is factory tested before dispatch and is intended for straightforward installation, although professional fitting is recommended if there is any uncertainty. Please check the image before ordering to avoid mistakes. Note: no returns on electrical parts.

Features

• Direct OEM replacement


• Uses stock mounting locations


• Designed to handle increased power loads


• Manufactured to OEM specifications


• Matches the original equipment in appearance


• Fully factory tested before shipping


• Easy to install


• Professional installation recommended if unsure


• Check the image before ordering to avoid mistakes


• No returns on electrical parts

Specifications

• Thickness: 27 mm


• Length: 110 mm


• Height: 78 mm


• Distance between fixation holes: 125 mm


• Number of plugs: 3


• Number of pins: 18

Cross-Reference OEM Part Numbers

• 5KM-85540-00-00


• 5KM-85540-10-00


• 5UG-85540-00-00


• 5UG-85540-10-00


• 2P5-85540-00-00


• 5ND-85540-10-00


• DZE 1600


• IYA6043

Vehicle Fitments

• Yamaha YFM45F Grizzly 450 421cc 2007


• Yamaha YFM45F Kodiak 450 421cc 2004-2006


• Yamaha YFM 450 Grizzly 2007


• Yamaha YFM 450 Kodiak 2004-2006


• Yamaha 450 4x4 Auto 2004-2006


• Yamaha 450 4x4 2005-2006


• Yamaha Grizzly 450 2007
