CDI BOX 1P1-85540-00-00 IYA6044, ATV
Yamaha
YFM 400cc Grizzly (2007-2008)
YFM 400cc Kodiak (2005-2006)
Yamaha YFM4FG Grizzly 400 401cc 2007-2008,
Yamaha YFM4A Kodiak 400 4x4 401cc 2005-2006,
| Technical specifications | |
| Punto de encendido (ignition timing) | AVANCE |
| Sistema electronico (type) | DIGITAL |
| Alimentacion del encendido (input) | BATERIA (DC) |
| # salidas (# output) | 1 |
| Alto (height) | 27 [mm] |
| Ancho (width) | 78 [mm] |
| Largo (length) | 142 [mm] |
| # terminales (# terminals) | 18 |
| Potenciado (enhaced) | NO |
| dze Apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| Yamaha | YFM | Kodiak | 400 | from 2005 to 2006 | 1P1-85540-00 |
| Yamaha | YFM | Grizzly | 400 | from 2007 to 2008 | 1P1-85540-00 |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.

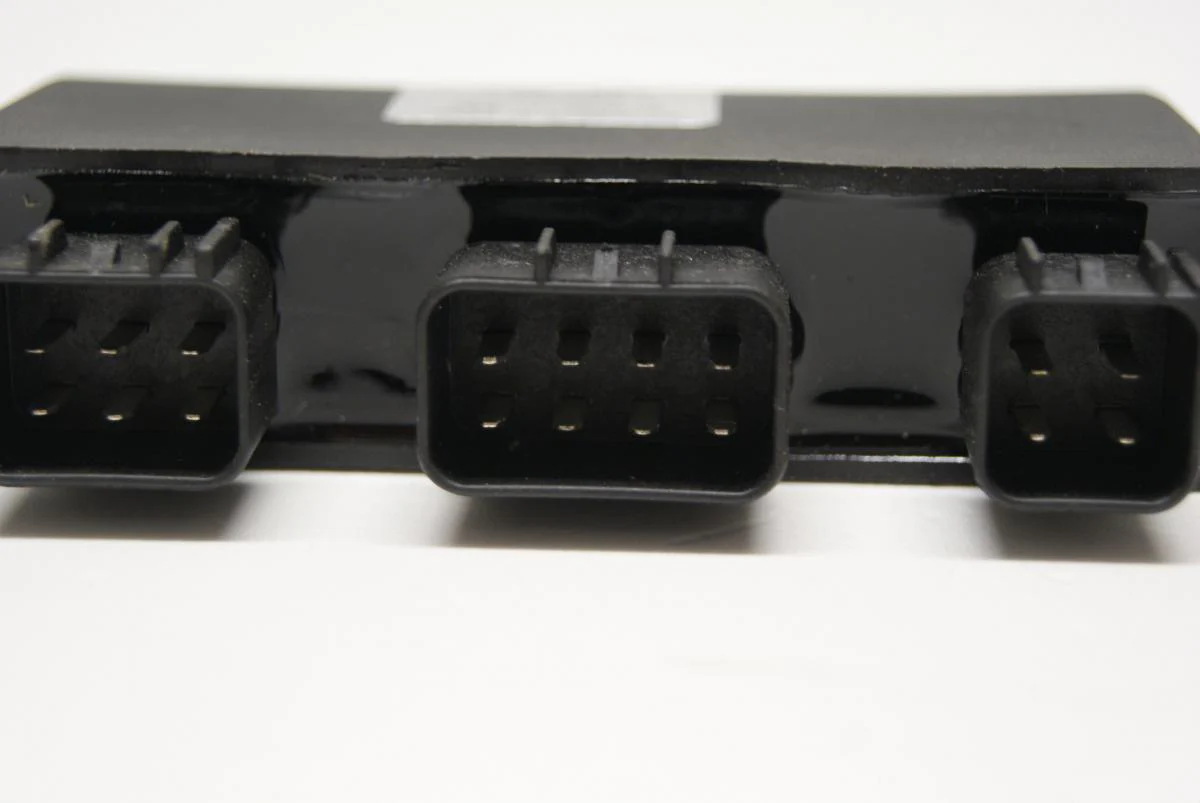

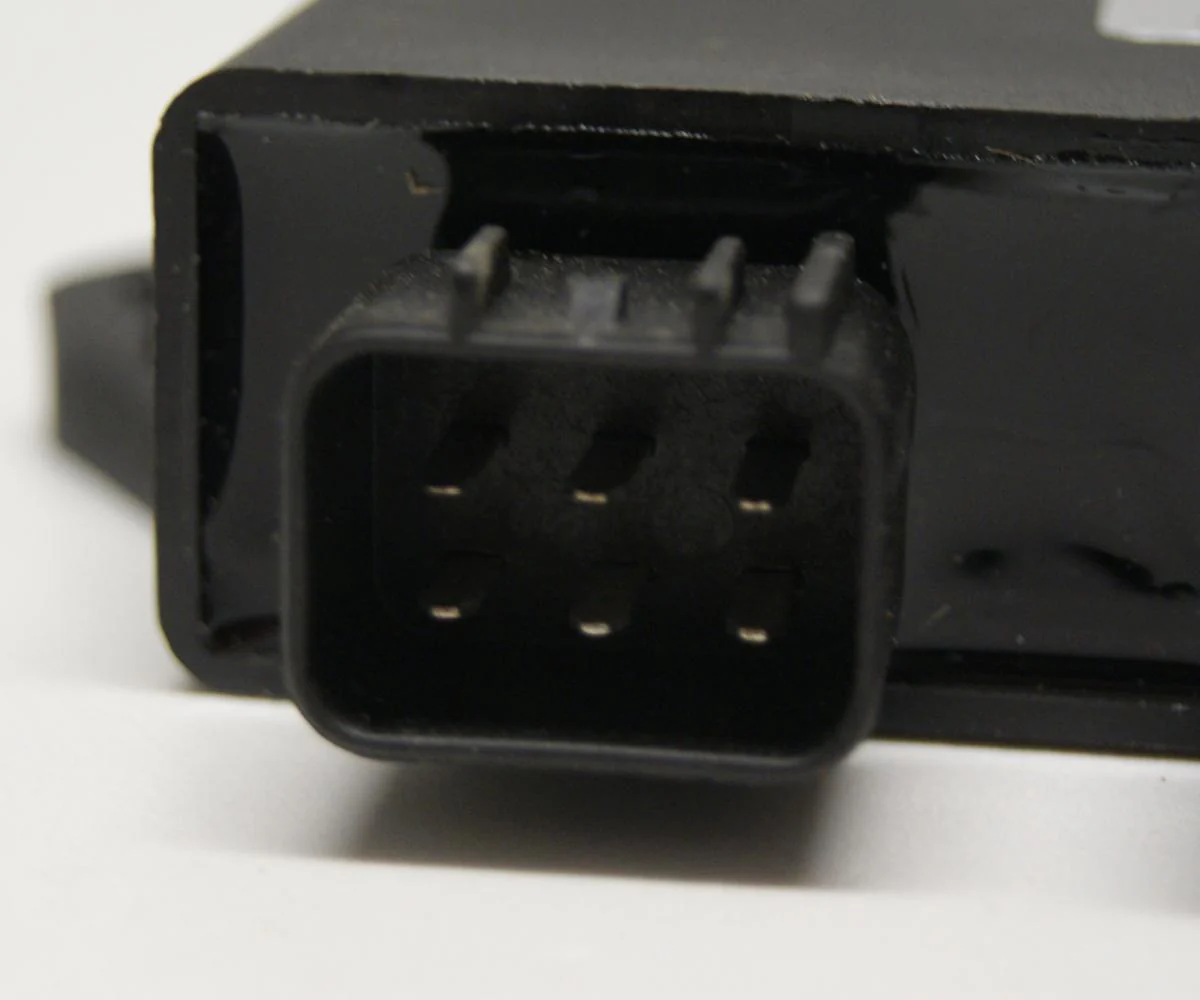

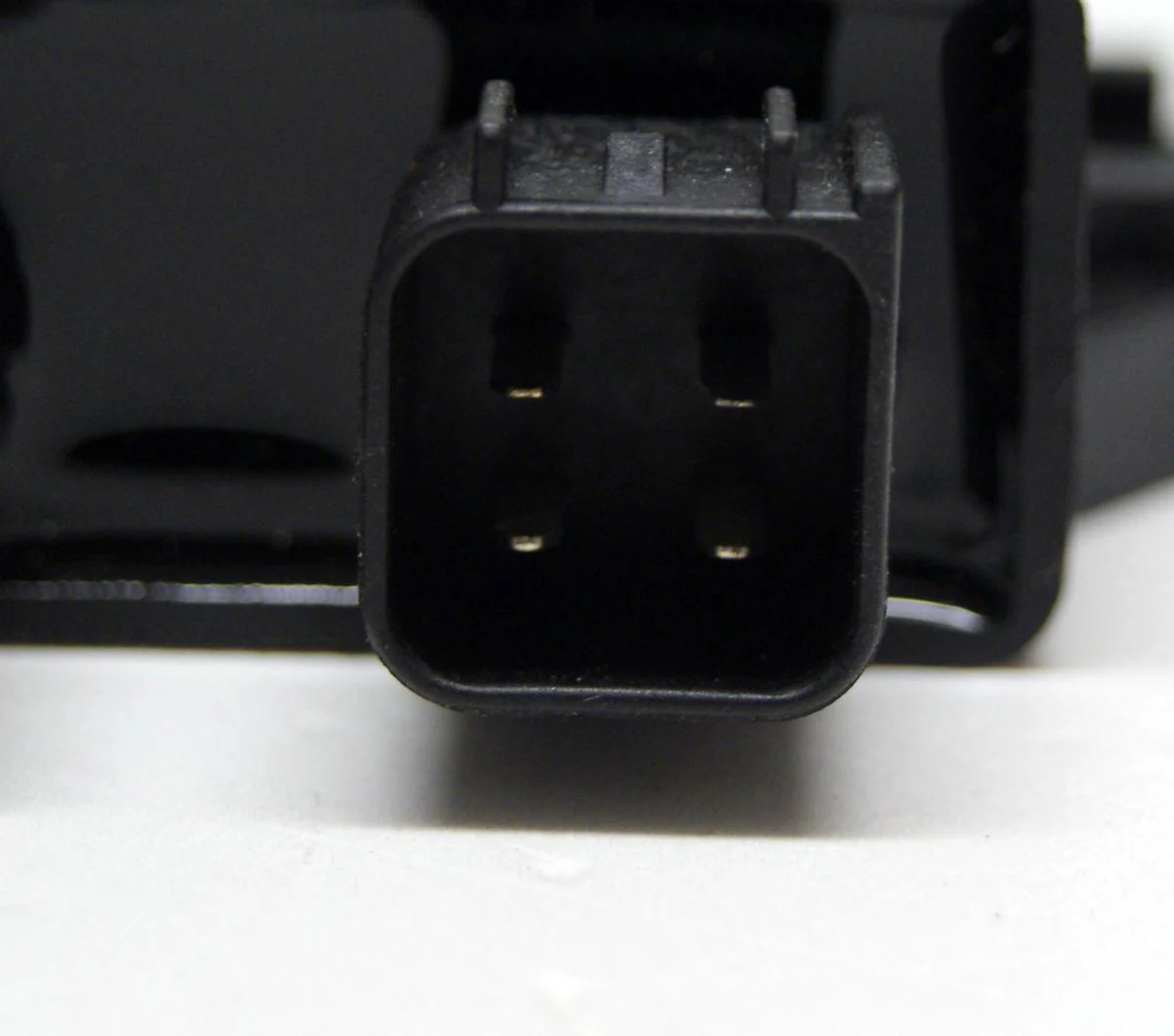

- Please check the image and connection plugs before ordering to avoid mistakes.
- Note. No Returns on Electrical Parts.
Part No. 44-5816 (oro2u.com)
Cross reference numbers ONLY.
Yamaha 1P1-85540-00-00 C.D.I. UNIT ASSY part is also
used on these models and components: 2005 KODIAK 400 4WD - YFM4FAT ELECTRICAL 1 2005 KODIAK 400 4WD HUNTER - YFM4FAHT ELECTRICAL 1 2006 KODIAK 400 4WD - YFM4FAV ELECTRICAL 1 2006 KODIAK 400 4WD HUNTER - YFM4FAHV ELECTRICAL 1 2007 GRIZZLY 400 - YFM4FGW ELECTRICAL 1 2007 GRIZZLY 400 HUNTER - YFM4FGHW ELECTRICAL 1 2008 GRIZZLY 400 4WD - YFM4FGX ELECTRICAL 1 2008 GRIZZLY 400 4WD HUNTER (Camouflage - AP HD) - YFM4FGHX
ELECTRICAL 1 2008 YFM4FGX-B ELECTRICAL 1
DZE 1599 [ARROWHEAD IYA6044]
Yamaha YFM Grizzly 400 1P1-85540-00 from 2007 to 2008 Yamaha YFM Kodiak 400 1P1-85540-00 from 2005 to 2006
