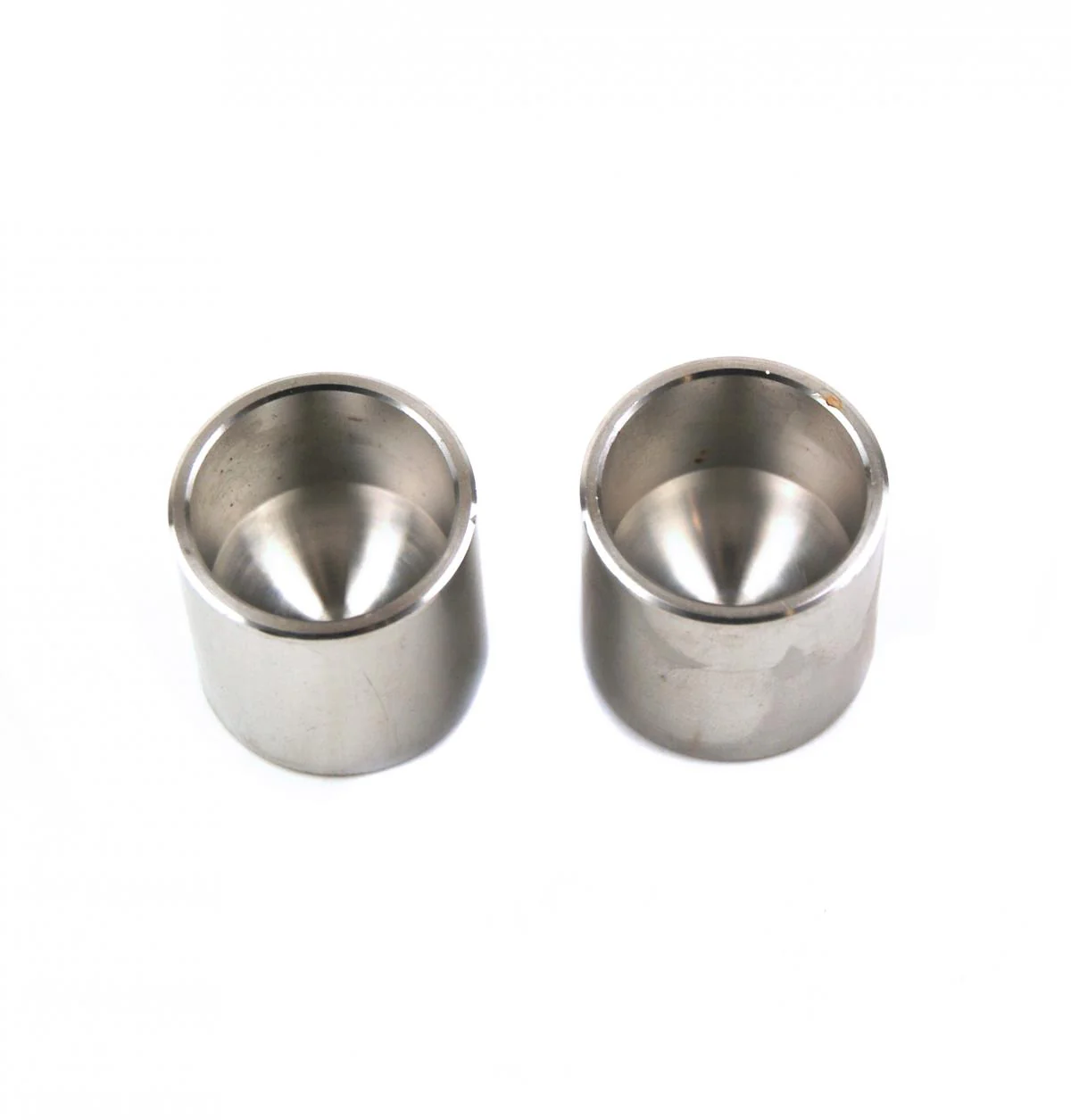

STAINLESS STEEL PISTON SIZE & FITMENT

• OD: 25.90mm
• HEIGHT 27.00mm
• WALL : 3.00mm
• KIT QTY : 2 PISTON'S



FRONT CALIPER FITMENT

• Can-Am 450cc Outlander DPS 450 EFI 2016 - 2021
• Can-Am 450cc Outlander L 450 EFI 2015 - 2016
• Can-Am 450cc Outlander L Max 450 EFI 2015 - 2016
• Can-Am 450cc Outlander Max 450 6x6 2019 - 2021
• Can-Am 450cc Outlander Max 450 EFI 2017
• Can-Am 450cc Outlander Max DPS 450 EFI 2016 - 2021
• Can-Am 450cc Outlander Max STD 450 EFI 2018 - 2021
• Can-Am 450cc Outlander STD 450 EFI 2017 - 2021
• Can-Am 500cc Outlander 500 STD 4x4 2013 - 2015
• Can-Am 500cc Outlander 500 XT 4x4 2013 - 2014
• Can-Am 500cc Outlander L 500 EFI 2015
• Can-Am 500cc Outlander L Max 500 EFI 2015
• Can-Am 500cc Outlander Max 500 EFI 2015
• Can-Am 500cc Outlander Max 500 STD 4x4 2013 - 2014
• Can-Am 500cc Outlander Max 500 XT 4x4 2013 - 2014
• Can-Am 500cc Renegade 500 2013 - 2015
• Can-Am 570cc Outlander DPS 570 EFI 2016 - 2021
• Can-Am 570cc Outlander L 570 EFI 2016
• Can-Am 570cc Outlander LE 570 EFI 2016
• Can-Am 570cc Outlander Max 570 EFI 2016 - 2017
• Can-Am 570cc Outlander Max DPS 570 EFI 2016 - 2021
• Can-Am 570cc Outlander Max STD 570 EFI 2018 - 2021
• Can-Am 570cc Outlander STD 570 EFI 2017 - 2021
• Can-Am 570cc Outlander XMR 570 EFI 2016 - 2021
• Can-Am 570cc Renegade 570 EFI 2016 - 2021
• Can-Am 570cc Renegade XMR 570 EFI 2017 - 2021
• Can-Am 650cc Outlander 650 6x6 2015 - 2018
• Can-Am 650cc Outlander 650 STD 4x4 2013 - 2015
• Can-Am 650cc Outlander 650 XMR 2013 - 2021
• Can-Am 650cc Outlander 650 XT 4x4 2013 - 2014
• Can-Am 650cc Outlander DPS 650 EFI 2017 - 2021
• Can-Am 650cc Outlander Max 650 6x6 2019 - 2021
• Can-Am 650cc Outlander Max 650 DPS 2021
• Can-Am 650cc Outlander Max 650 XT 2021
• Can-Am 650cc Outlander Max 650 STD 4x4 2013 - 2015
• Can-Am 650cc Outlander Max 650 XT 4x4 2013 - 2014
• Can-Am 650cc Outlander STD 650 EFI 2017 - 2021
• Can-Am 650cc Renegade 650 EFI 2018 - 2019
• Can-Am 800cc Outlander 800R STD 4x4 2012 - 2015
• Can-Am 800cc Outlander 800R XMR 2015
• Can-Am 800cc Outlander 800R XT 4x4 2012 - 2014
• Can-Am 800cc Outlander Max 800R EFI 2015
• Can-Am 800cc Outlander Max 800R STD 4x4 2013 - 2014
• Can-Am 800cc Outlander Max 800R XT 4x4 2013 - 2014
• Can-Am 800cc Renegade 800 2012 - 2015
• Can-Am 800cc Renegade 800 XXC 2012 - 2014
• Can-Am 850cc Outlander 850 2016
• Can-Am 850cc Outlander 850 DPS 2016 - 2021
• Can-Am 850cc Outlander 850 XMR 2016 - 2021
• Can-Am 850cc Outlander 850 XT 2016 - 2021
• Can-Am 850cc Outlander 850 XTP 2016 - 2021
• Can-Am 850cc Outlander Max 850 DPS 2017 - 2021
• Can-Am 850cc Outlander Max 850 XT 2016 - 2021
• Can-Am 850cc Outlander Max 850 XTP 2016 - 2021
• Can-Am 850cc Renegade 850 2016 - 2021
• Can-Am 850cc Renegade 850 XXC 2016 - 2021
• Can-Am 1000cc Outlander 1000 DPS 2012 - 2019
• Can-Am 1000cc Outlander 1000 EFI 6x6 2015 - 2018
• Can-Am 1000cc Outlander 1000 XMR 2013 - 2021
• Can-Am 1000cc Outlander 1000 XT 2012 - 2021
• Can-Am 1000cc Outlander 1000 XTP 2013 - 2021
• Can-Am 1000cc Outlander 1000 XXC 2020 - 2021
• Can-Am 1000cc Outlander Max 1000 2013 - 2020
• Can-Am 1000cc Outlander Max 1000 EFI 6x6 2019 - 2021
• Can-Am 1000cc Outlander Max 1000 LTD 2015 - 2016
• Can-Am 1000cc Outlander Max 1000 XT 2013 - 2021
• Can-Am 1000cc Outlander Max 1000 XTP 2013 - 2021
• Can-Am 1000cc Renegade 1000 2012 - 2019
• Can-Am 1000cc Renegade 1000 XMR 2016 - 2021
• Can-Am 1000cc Renegade 1000 XXC 2012 - 2021



REAR CALIPER FITMENT



• Can-Am 800cc Outlander Max 800R XT 4x4 2013 - 2014
• Can-Am 800cc Renegade 800 2012 - 2015
• Can-Am 800cc Renegade 800 XXC 2012 - 2014
• Can-Am 850cc Outlander 850 2016
• Can-Am 850cc Outlander 850 DPS 2016 - 2021
• Can-Am 850cc Outlander 850 XMR 2016 - 2021
• Can-Am 850cc Outlander 850 XT 2016 - 2021
• Can-Am 850cc Outlander 850 XTP 2016 - 2021
• Can-Am 850cc Outlander Max 850 DPS 2017 - 2021
• Can-Am 850cc Outlander Max 850 XT 2016 - 2021
• Can-Am 850cc Outlander Max 850 XTP 2016 - 2021
• Can-Am 850cc Renegade 850 2016 - 2021
• Can-Am 850cc Renegade 850 XXC 2016 - 2021
• Can-Am 1000cc Outlander 1000 DPS 2012 - 2019
• Can-Am 1000cc Outlander 1000 EFI 6x6 2015 - 2018
• Can-Am 1000cc Outlander 1000 XMR 2013 - 2021
• Can-Am 1000cc Outlander 1000 XT 2012 - 2021
• Can-Am 1000cc Outlander 1000 XTP 2013 - 2021
• Can-Am 1000cc Outlander 1000 XXC 2020 - 2021
• Can-Am 1000cc Outlander Max 1000 2013 - 2020
• Can-Am 1000cc Outlander Max 1000 EFI 6x6 2019 - 2021
• Can-Am 1000cc Outlander Max 1000 LTD 2015 - 2016
• Can-Am 1000cc Outlander Max 1000 XT 2013 - 2021
• Can-Am 1000cc Outlander Max 1000 XTP 2013 - 2021
• Can-Am 1000cc Renegade 1000 2012 - 2019
• Can-Am 1000cc Renegade 1000 XMR 2016 - 2021
• Can-Am 1000cc Renegade 1000 XXC 2012 - 2021

REF NO: 18-9024 / PISTON 13-5053
