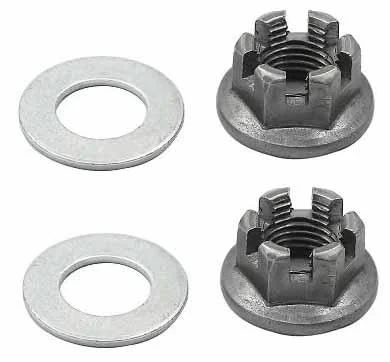

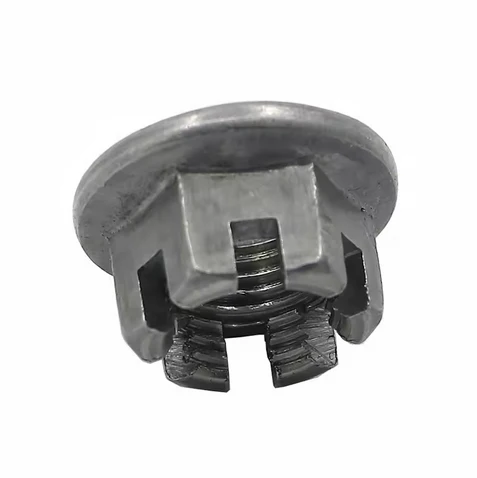

This rear axle hub castle nut and washer set is designed for use in multiple Yamaha ATV rear wheel and steering assemblies. It comprises a washer plate and a castle nut manufactured to meet OEM specifications for durability and precise fit within high-stress applications.

Features

• Manufactured from advanced materials ensuring reliable performance


• Constructed to OEM specifications for accurate fit


• Meets or exceeds OEM quality standards


• Serves as a direct OEM replacement


• Installation is straightforward, though professional assistance is recommended if uncertain

Specifications

• Includes a washer plate and a castle nut


• M14x1.50P


• Weight approximately 0.062 kg


• Brand: Factory Image Racing


• Alternate SKUs: 90171-14037-00 (nut), 90201-14226-00 (washer plate)

Cross-Reference OEM Part Numbers

• Washer Plate: 90201-14226-00


• Nut Castle: 90171-14037-00

Vehicle Fitments

• 1998 Yamaha Banshee (YFZ350K) – Rear Wheel


• 1998 Yamaha Blaster (YFS200K) – Rear Wheel


• 1998 Yamaha Breeze (YFA1K) – Rear Wheel


• 1998 Yamaha Warrior (YFM350XK/XKC) – Rear Wheel


• 1999 Yamaha Banshee (YFZ350L) – Rear Wheel


• 1999 Yamaha Blaster (YFS200L) – Rear Wheel


• 1999 Yamaha Breeze (YFA1L) – Rear Wheel


• 1999 Yamaha Warrior (YFM350XL/XLC) – Rear Wheel


• 2000 Yamaha Banshee (YFZ350M) – Rear Wheel


• 2000 Yamaha Blaster (YFS200M) – Rear Wheel


• 2000 Yamaha Breeze (YFA1M/1MC) – Rear Wheel


• 2000 Yamaha Warrior (YFM350XM/XMC) – Rear Wheel


• 2001 Yamaha 660R Raptor (YFM660RN/RNC) – Rear Wheel and Crankshaft Piston


• 2001 Yamaha Banshee (YFZ350N) – Rear Wheel


• 2001 Yamaha Blaster (YFS200N) – Rear Wheel


• 2001 Yamaha Breeze (YFA1N/1NC) – Rear Wheel


• 2001 Yamaha Warrior (YFM350XN/XNC) – Rear Wheel


• 2002 Yamaha 660R Raptor (YFM660RP/RPB) – Rear Wheel, Steering, Crankshaft Piston


• 2002 Yamaha Banshee (YFZ350P) – Rear Wheel


• 2002 Yamaha Blaster (YFS200P) – Rear Wheel


• 2002 Yamaha Breeze (YFA1P/1PC) – Rear Wheel


• 2002 Yamaha Grizzly 660 (YFM660FP/FPS/FHP) – Steering


• 2002 Yamaha Kodiak 4WD Hunter (YFM400FAHP) – Steering


• 2002 Yamaha Warrior (YFM350XP/XPC) – Rear Wheel


• 2003 Yamaha 660 Grizzly Hardwood Hunter (YFM660FHRH) – Steering


• 2003 Yamaha Banshee (YFZ350R/LER) – Rear Wheel


• 2003 Yamaha Blaster (YFS200R) – Rear Wheel


• 2003 Yamaha Breeze (YFA1R/1RC) – Rear Wheel


• 2003 Yamaha Grizzly 660 (YFM660FR/FRGY/FHR) – Steering


• 2003 Yamaha Raptor 660R (YFM660RR/RR) – Rear Wheel and Steering


• 2003 Yamaha Warrior (YFM350XR/XRC) – Rear Wheel


• 2004 Yamaha 660R Raptor (YFM660RS/RLES) – Rear Wheel and Steering


• 2004 Yamaha Banshee (YFZ350S/LES) – Rear Wheel


• 2004 Yamaha Big Bear 400 (YFM40S/FS) – Steering


• 2004 Yamaha Blaster (YFS200S) – Rear Wheel


• 2004 Yamaha Breeze (YFA1S/1SC) – Rear Wheel


• 2004 Yamaha Bruin 350 (YFM35AS/FAHS) – Steering


• 2004 Yamaha Grizzly 125 (YFM125S) – Rear Wheel


• 2004 Yamaha Grizzly 660 (YFM660FS) – Steering


• 2004 Yamaha Kodiak 400/450 (YFM4AS/FAHS/FAS) – Steering


• 2004 Yamaha Raptor 350 (YFM350S) – Rear Wheel


• 2004 Yamaha Warrior (YFM35XS/XSC) – Rear Wheel


• 2004 Yamaha YFZ450 (YFZ450S/LES) – Rear Wheel and Steering


• 2005 Yamaha 660R Raptor (YFM660RT) – Rear Wheel and Steering


• 2005 Yamaha Banshee (YFZ350T/SET) – Rear Wheel


• 2005 Yamaha Big Bear 400 4WD (YFM40FT) – Steering


• 2005 Yamaha Blaster (YFS200T) – Rear Wheel


• 2005 Yamaha Bruin 2WD (YFM35BAT) – Steering


• 2005 Yamaha Grizzly 125 Hunter (YFM125GHT) – Rear Wheel


• 2005 Yamaha Grizzly 660 (YFM66FAT/FAHT) – Steering


• 2005 Yamaha Kodiak 400 4WD (YFM4FAT) – Steering


• 2005 Yamaha Raptor 350 (YFM350RT/RSET) – Rear Wheel


• 2005 Yamaha Raptor SE (YFM660RSET) – Rear Wheel and Steering


• 2005 Yamaha YFZ450 (YFZ450T) – Rear Wheel and Steering


• 2005 Yamaha YFZ450 Special Edition (YFZ450SET) – Rear Wheel and Steering


• 2006 Yamaha Banshee (YFZ350V/SEV/SPV) – Rear Wheel


• 2006 Yamaha Big Bear 400 4WD (YFM40FV) – Steering


• 2006 Yamaha Blaster (YFS200V/SEV) – Rear Wheel


• 2006 Yamaha Bruin 2WD/350 4WD (YFM35BAV/FAV/FAHV) – Steering


• 2006 Yamaha Grizzly 125 Hunter (YFM125GHV) – Rear Wheel


• 2006 Yamaha Grizzly 660 (YFM66FAHDV/FABGG/FAV/FAHV) – Steering


• 2006 Yamaha Kodiak 400/450 (YFM4FAV/FAHV) – Steering


• 2006 Yamaha Raptor 350 (YFM350RV/RSEV) – Rear Wheel


• 2006 Yamaha Raptor 700 (YFM700RV/RSPV) – Steering


• 2006 Yamaha Wolverine 350/450 (YFM35XV/45FXV) – Steering


• 2006 Yamaha YFZ450 Special Edition (YFZ450SPV/BV) – Steering


• 2007 Yamaha Big Bear 400 4WD Hunter IRS (YFM40FBHW) – Steering


• 2007 Yamaha Grizzly 125 Hunter (YFM125GHW) – Rear Wheel


• 2007 Yamaha Grizzly 350 2WD/4WD IRS (YFM35GW/35FGW/35FGIW/35FGIHW) – Steering


• 2007 Yamaha Grizzly 400/450 (YFM4FGW/4FGHW/45FGW/45FGHW/45FGOHW) – Steering


• 2007 Yamaha Grizzly 450 Special Silver Edition (YFM45FGSEW/45FGW-C) – Steering


• 2007 Yamaha Grizzly 660 (YFM66FGW/FGHW) – Steering


• 2007 Yamaha Raptor 700 (YFM70RW/RYRW/RSEW/RSE2W) – Steering


• 2007 Yamaha Wolverine 350/450 Sport (YFM35XW/45FXW/45FXSEW) – Steering


• 2007 Yamaha YFZ450 (YFZ450W/BBW) – Steering


• 2008 Yamaha Grizzly 660 (YFM66FGXGR/FGXL/FGXR/FGHX) – Steering
