Carburetor Assembly for Suzuki TS125/TS100

Compatible Models:

• 1971 Suzuki TS125 Duster


• 1972 Suzuki TS125 Duster


• 1973 Suzuki TS125 Duster


• 1974 Suzuki TS125 Duster


• 1975 Suzuki TS125 Duster


• 1976 Suzuki TS125 Duster


• 1977 Suzuki TS125


• 1978 Suzuki TS125


• 1979 Suzuki TS125


• 1980 Suzuki TS100


• 1981 Suzuki TS100


• 1979 Suzuki TS100


• 1978 Suzuki TS100

Specifications:

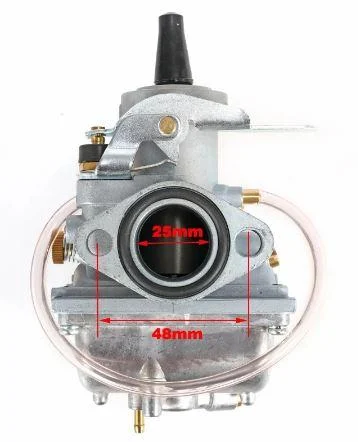

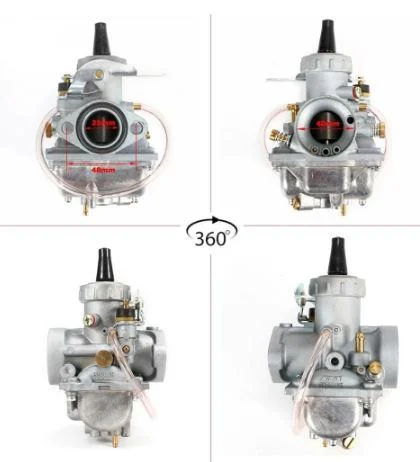

• Type: Flange Mount Carburettor


• Model: VM Carb


• Size: 26mm


• Carburettor Slide Type: Round Slide


• Mount Type: Bolt On Flange


• Idle Location: Left


• Carburettor Depth: 85mm


• Carburettor Height: 133mm


• Carburettor Width: 85mm


• Intake Bell OD: 43mm

Features:

• Top-quality carburetor made to high precision standards.


• Exact OEM measurements and fittings.


• Meets or exceeds OEM specifications.


• Please see the image before ordering to avoid mistakes.


• ORO products are high-quality replacement parts and carry a satisfaction guarantee.


• Best value for money.


• All components match the original equipment in appearance.


• Easy installation; consult a professional if unsure.

Cross Reference Numbers:

• 13200-48030


• GASKET, FLOAT CHAMBER: 13251-11010


• FLOAT: 13252-11010


• PIN, FLOAT: 13254-01010


• PLATE: 13259-97010


• VALVE, NEEDLE: 13370-18111


• GASKET, NEEDLE VALVE: 13392-58600


• JET, PILOT (17.5): 09492-17006


• JET, MAIN (120): 09491-24014


• WASHER, NEEDLE JET: 13382-03110


• RING: 13295-28010, 13295-28011


• SCREW, THROTTLE STOP: 13267-41640


• SPRING: 13268-48110


• RING: 13294-30010, 13278-02340


• PLUG: 13664-18654


• WASHER: 13663-31010


• JET, NEEDLE (0-4): 09494-00242


• VALVE, THROTTLE (CA:2.0): 13551-48130


• NEEDLE, JET (5F41): 13383-48030


• SPRING: 13388-47010


• WASHER: 13382-47010


• CLIP, NEEDLE: 13394-10010


• RING: 13387-47010


• SEAT, THROTTLE VALVE SPRING: 13581-48020


• LOCK WASHER: 08321-21038, 09162-03001


• SCREW: 02111-03067, 02112-0306B


• SPRING, THROTTLE VALVE: 13573-27650


• NUT, CABLE ADJUSTER: 13661-16600


• ADJUSTER, CABLE: 13577-48110


• BOOT, CABLE ADJUSTER: 13681-16601


• SCREW: 13247-05010


• GASKET: 13249-05010


• SCREW: 02112-04168, 02112-0416A


• LOCK WASHER: 08321-21048, 08321-0104A
