Intake Carb Flange / Holders Kit

Features:

• Cracked and leaking intake carb holders? Here's the cure!


• Sold as kit in the image.


• Color: Black & Dark Grey.


• Material: Metal, Rubber, and Paper.


• Easy to install but if unsure, please use a professional.

Size:

• Intake Manifolds: approx. 7.1 x 6.7 x 4.7cm (2.80 x 2.64 x 1.85 inch) (L x W x H).


• Intake Gaskets: approx. 7.1 x 6.7cm (2.80 x 2.64 inch) (L x W).


• Intake Inner Diameter: 34mm.


• Intake Outer Diameter: 44mm.


• Mounting Hole Distance: 48mm/58mm.


• Please see pictures for more detailed measurements.

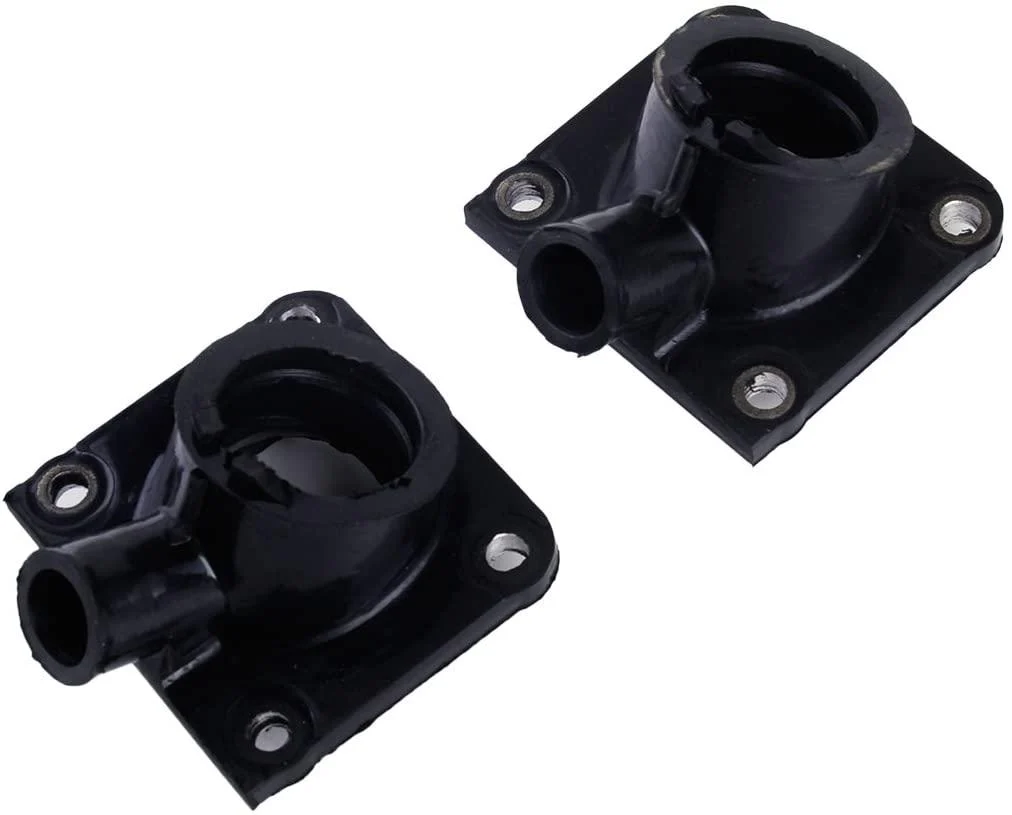

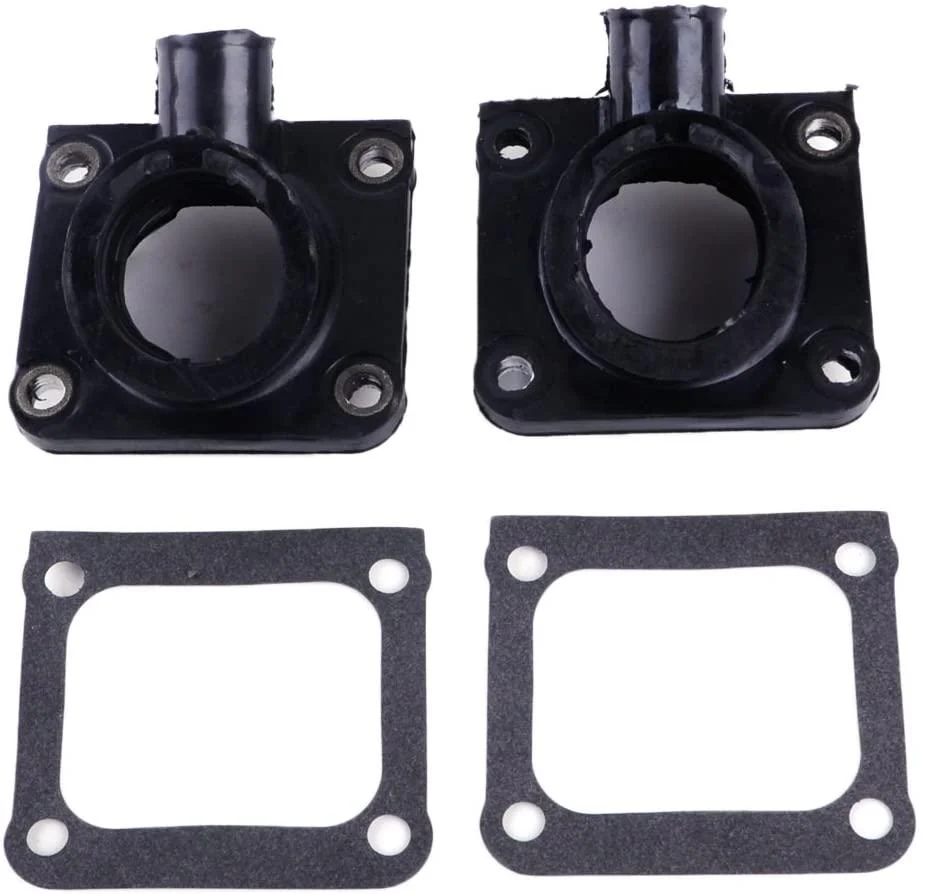

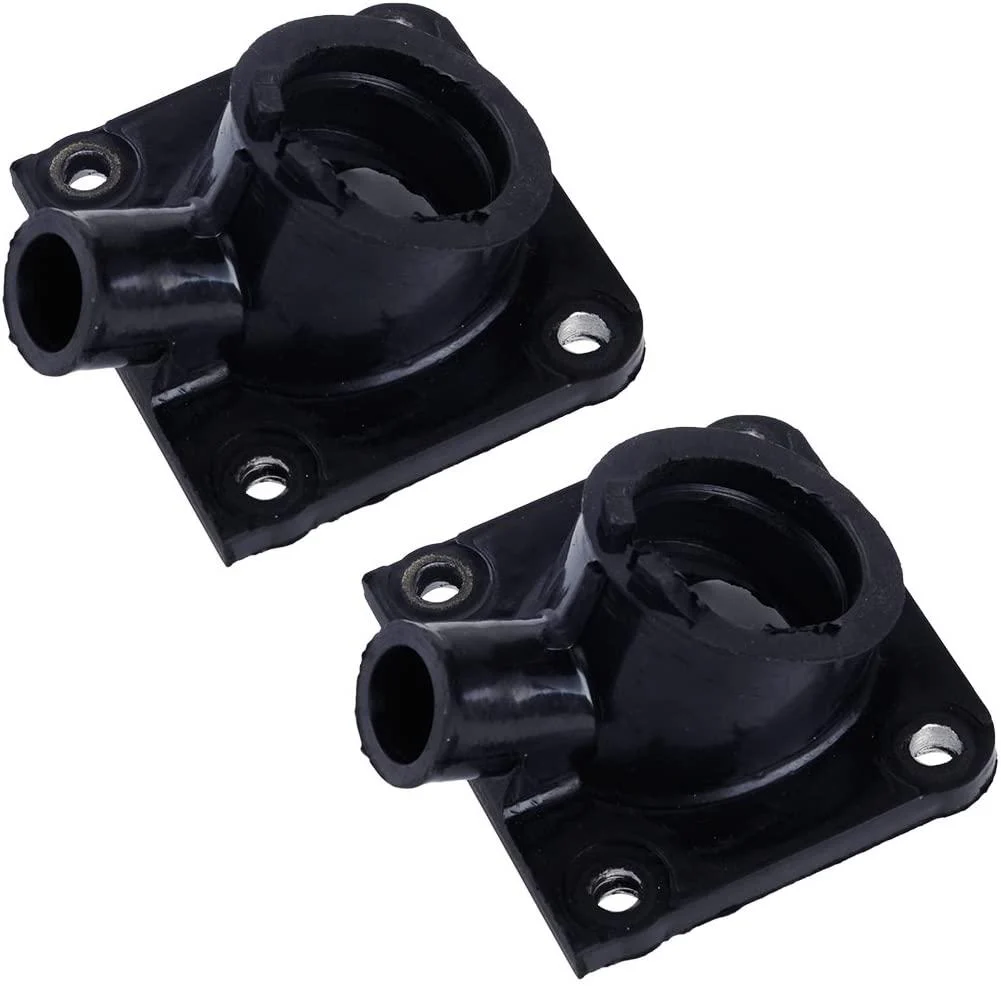

Kit Includes:

• 2 x Intake Manifolds


• 2 x Intake Gaskets


• 2 x Carb Flanges/Holders


• 2 x Reed Valve Gaskets

Cross Reference Numbers:

• K&L 11-4221


• QTY 2 x 31K-13565-01-00 Carb Flanges/Holders


• QTY 2 x 3GC-13621-00-00 Reed Valve Gaskets


• QTY 4 x 98580-03008-00 Pan Head Screws


• QTY 4 x 92990-03100-00 Spring Washers


• QTY 8 x 91316-06025-00 Carb Holder Bolts


• 31K-13565-01-00

Applicable Models:

Yamaha:

• YFZ350 Banshee 1987-2005


• RD350LC 1981-1982


• RZ350L/LC/N/NCII 1984-1985

Detailed Model Fitment:

• 1984 RZ350L - Air Filter


• 1985 RZ350N - Air Filter


• 1985 RZ350NC - Air Filter


• 1985 RZ350NCII - Air Filter


• 1987 YFZ350T - Air Filter


• 1988 BANSHEE (YFZ350U) - Air Filter


• 1989 BANSHEE (YFZ350W) - Air Filter


• 1990 BANSHEE (YFZ350A) - Air Filter


• 1991 BANSHEE (YFZ350B_MN) - Air Filter


• 1992 YFZ350D - Air Filter


• 1992 BANSHEE (YFZ350D_MN) - Air Filter


• 1993 BANSHEE (YFZ350E) - Air Filter


• 1993 BANSHEE (YFZ350E_MN) - Air Filter


• 1994 BANSHEE (YFZ350F) - Intake


• 1994 BANSHEE (YFZ350F_MN) - Intake


• 1995 BANSHEE (YFZ350G) - Intake


• 1995 BANSHEE (YFZ350G_MN) - Intake


• 1996 BANSHEE (YFZ350H) - Intake


• 1996 BANSHEE (YFZ350H_MN) - Intake


• 1997 BANSHEE (YFZ350J) - Intake


• 1997 BANSHEE (YFZ350J_MN) - Intake


• 1998 BANSHEE (YFZ350K) - Intake


• 1999 BANSHEE (YFZ350L) - Intake


• 2000 BANSHEE (YFZ350M) - Intake


• 2001 BANSHEE (YFZ350N) - Intake


• 2002 BANSHEE (YFZ350P) - Intake


• 2003 BANSHEE (YFZ350R) - Intake


• 2003 BANSHEE LE (YFZ350LER) - Intake


• 2004 BANSHEE (YFZ350S) - Intake


• 2004 BANSHEE - LIMITED EDITION BLACK (YFZ350LES) - Intake


• 2005 BANSHEE (YFZ350T) - Intake


• 2005 BANSHEE SE (YFZ350SET) - Intake


• 2006 BANSHEE (YFZ350V) - Intake


• 2006 BANSHEE SE (YFZ350SEV) - Intake


• 2006 BANSHEE SP (YFZ350SPV) - Intake
