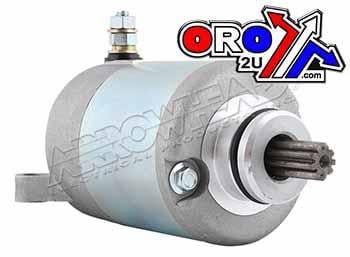

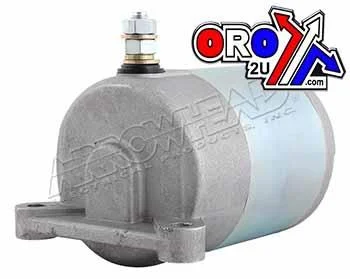

Starter Motor - Arrowhead SMU0569

Compatibility:

Polaris Models:

• Hawkeye 325 2X4 (2015)


• Ranger ETX (2015-2016)


• Ranger ETX EU (2015-2016)


• Sportsman ETX EFI (2015)


• Sportsman ETX EFI MD (2015)


• Sportsman ACE 325 EFI (2014-2016)


• M1400 Gas (2016)

Specifications:

• Type: Permanent Magnet Direct Drive (PMDD)


• Voltage: 12-Volt


• Rotation Direction: Clockwise (CW)


• Number of Teeth: 9


• Gear OD: 0.465" (11.800 mm)


• Length: 3.839" (97.500 mm)


• Mount Hole ID: 16.500 mm


• Mount Hole 1 Type: Unthreaded


• Mount Hole 2 Type: Unthreaded


• Registry OD: 1.181" (30 mm)


• M6 B+ Stud

Mounting Ear Distance:

• 12.366" (160.100 mm)

Features:

• Meets or exceeds OEM quality.


• Direct OEM replacement with stock mounting locations.


• Designed to handle increased power loads.


• Best value for money.


• Made to OEM specifications, matching original equipment appearance.


• All electrical parts are 100% factory tested before shipping.


• Easy installation; consult a professional if unsure.


• Note: No Returns on Electrical Parts.

Cross Reference Numbers:

• SMU0569 (Arrowhead)


• 410-22077 (J & N)


• 4013428 (Polaris)


• 4014972 (Polaris)


• 4015223 (Polaris)
