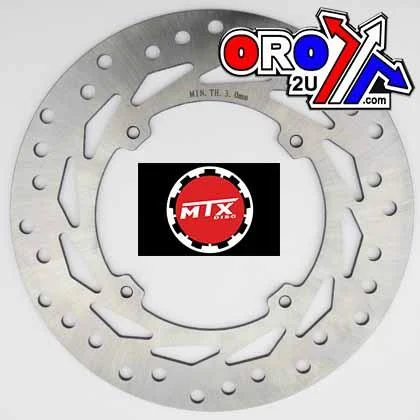

The component identified by the part number 40-110.MD.OE is a front brake disc, intended for off-road motorcycle applications. It is manufactured by MTX Parts under the Motodisc MDS013 model designation, and its construction offers enhanced friction compared to standard stainless steel discs, delivering improved stopping performance. The disc is specified to fit standard hub configurations.

Features

• Rotor material provides higher friction than plain stainless steel for enhanced stopping power


• Rotors measure 240mm in diameter


• Designed for standard hub compatibility

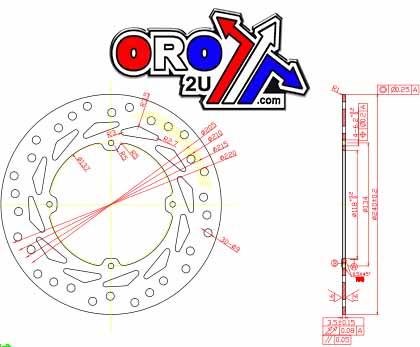

Specifications

• Outer diameter: 240mm


• Inner diameter: 118mm


• Thickness: 3mm


• Number of bolt holes: 4


• Hole diameter: 6,5mm


• Pitch: 134mm


• Countersink: No


• Weight: 0.662kg


• Catalogue classification: ROAD

Cross-Reference OEM Part Numbers

• MX-05549W


• 20171108


• 45351-KZ1-771


• 45351-KPS-900


• BRAKING HO09FID


• EBC MD6001D


• 5100-160


• MOTO-MASTER 110295

Vehicle Fitments

• 1984-2004 Honda XR250R


• 1987-1994 Honda CR125R


• 1987-1994 Honda CR250R


• 1991-1993 Honda XR250L


• 1984-1985 Honda XR350R


• 1984-1985 Honda XL350R


• 1983-1995 Honda MTX80


• 1983-1995 Honda MTX125


• 1983-1995 Honda MTX200


• 1992-1994 Honda CR125R


• 1992-1994 Honda CR250R


• 1992-1994 Honda CR500R


• 2003-2009 Honda CRF150F


• 2003-2015 Honda CRF230F


• 2008-2011 Honda CRF230L


• 2009-2011 Honda CRF230M


• 1988-1990 Honda NX250


• 1991-1996 Honda XR250L


• 1991-2004 Honda XR250R


• 1991-1995 Honda XR250R Pro Link


• 1996-2004 Honda XR400R


• 1991-2000 Honda XR600R


• 1993-1999 & 2012-2018 Honda XR650L


• 2000-2007 Honda XR650R
