Idle adjuster kit for installing a standard Mikuni idle screw assembly into stock carburettor bodies when a standard Mikuni top cap is used. Includes the required tools and hardware, with drilling and tapping of the carburettor body required; a drill press or mill is recommended.

Features

• Enables installation of a standard Mikuni idle adjuster into the carburettor body


• Necessary when the carburettor top has been replaced with a standard Mikuni cap

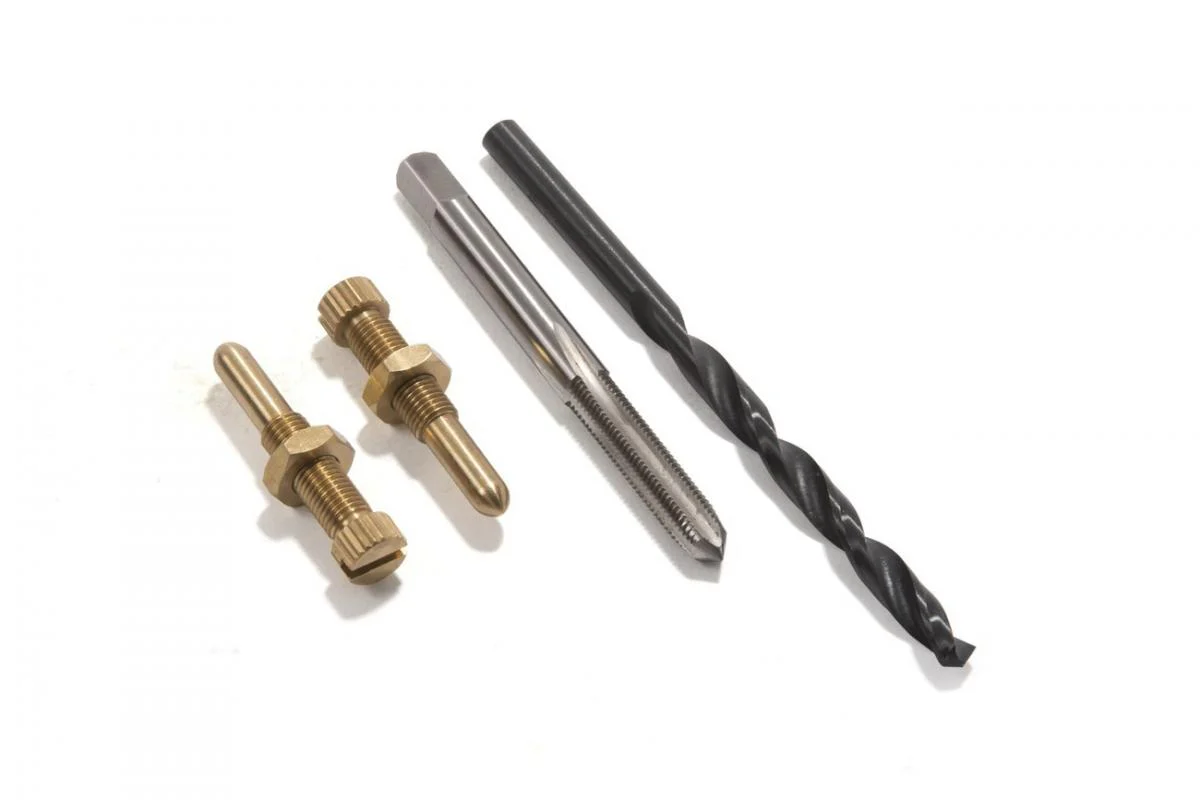

• Includes #6 drill bit, M6 × 0.75 mm thread tap, two idle screws with lock nuts, and instructions


• Drill press or mill recommended for accurate drilling


• Installation requires drilling and tapping of the carburettor body

Specifications

• Drill bit size: #6


• Tap size: M6 × 0.75 mm


• Included hardware: 2 × idle screws with lock nuts


• Model: Idle Adjuster Kit


• Carburettor type: Stock

Cross-Reference OEM Part Numbers

•


  Motion Pro 08-0045




Vehicle Fitments

• Yamaha YFS200 Blaster (1988–2006)


• Yamaha YFZ350 Banshee (1987–2006)
