HONDA
MUV 700 2009 - 2013,
SXS700 PIONEER 2014-2018,

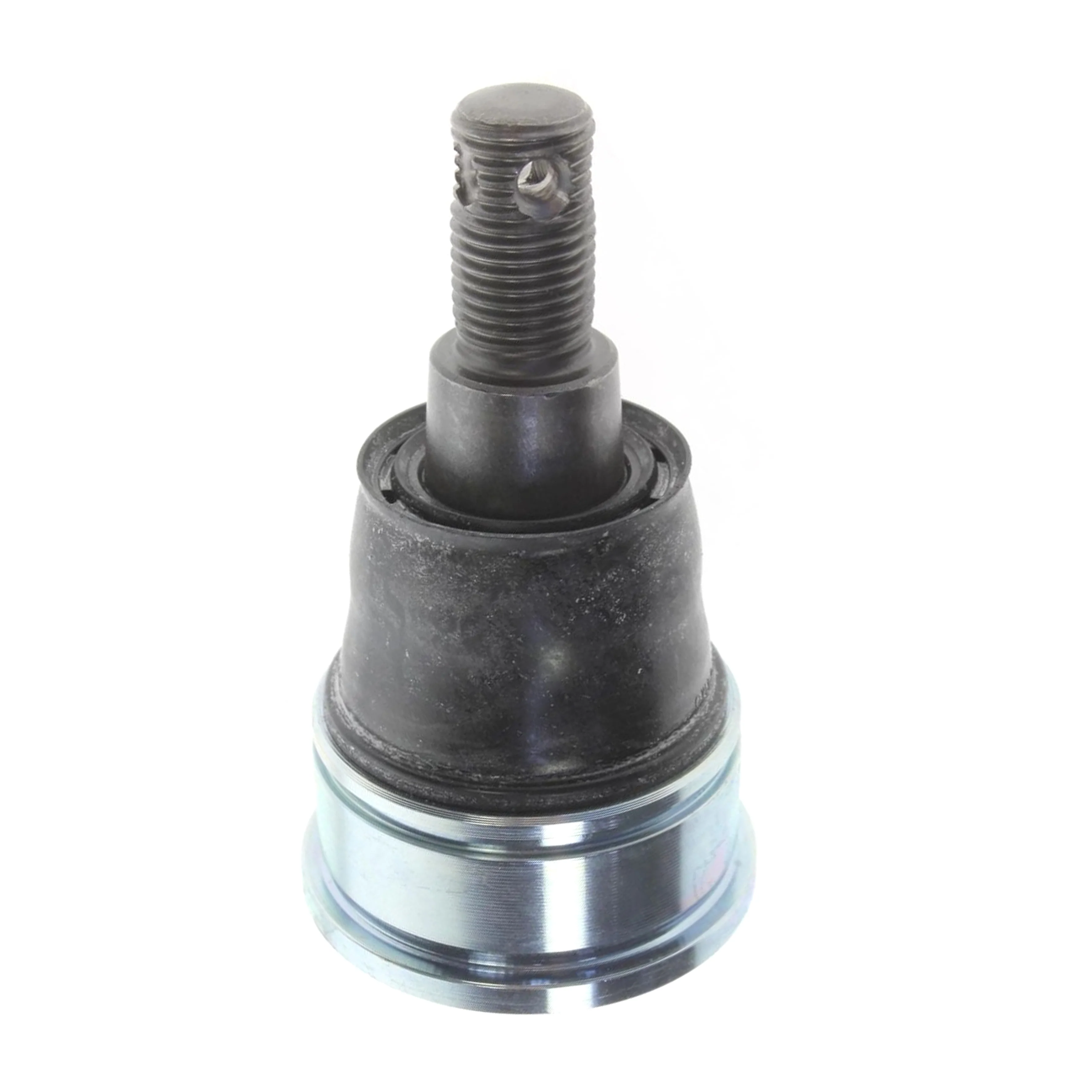

BALL JOINT LOWER, FRONT BRONCO AT-08822.

O.D. 40.05/ 43.9 mm, Height 12.5 mm, Groove width 1.9 mm Thread 12 mm x Length 19 mm, w/ 1 pc castle nut, pin, c-clip

Material: S45C(Body) + SCM435(Shaft)

Cross reference numbers ONLY.
51220-HL1-A01

Part No. 17-061.BR (oro2u.com)

Honda Side by Side 2009 MUV700 2A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2010 MUV700 2A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2012 MUV700 A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2009 MUV700 A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2012 MUV700 2A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2011 MUV700 2A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2010 MUV700 3A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2011 MUV700 A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2011 MUV700 3A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2014 SXS700M2 2AC - PIONEER 700 FRONT ARM



Honda Side by Side 2013 MUV700 AC - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2010 MUV700 A - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2013 MUV700 2AC - BIG RED FRONT KNUCKLE / DRIVESHAFT



Honda Side by Side 2014 SXS700M2 4AC - PIONEER 700-4 FRONT ARM



Honda Side by Side 2015 SXS700M4 AC - PIONEER 700-4 FRONT ARM



Honda Side by Side 2014 SXS700M4 AC - PIONEER 700-4 FRONT ARM



Honda Side by Side 2014 SXS700M4 3AC - PIONEER 700-4 FRONT ARM



Honda Side by Side 2015 SXS700M4 2AC - PIONEER 700-4 FRONT ARM



Honda Side by Side 2015 SXS700M2 AC - PIONEER 700 FRONT ARM



Honda Side by Side 2015 SXS700M2 2AC - PIONEER 700 FRONT ARM



Honda Side by Side 2016 SXS700M2 2AC - PIONEER 700 FRONT ARM



Honda Side by Side 2016 SXS700M4 2AC - PIONEER 700-4 FRONT ARM



Honda Side by Side 2016 SXS700M4 AC - PIONEER 700-4 FRONT ARM



Honda Side by Side 2016 SXS700M2 AC - PIONEER 700 FRONT ARM



Honda Side by Side 2017 SXS700M2D AC - PIONEER 700 DELUXE FRONT ARM



Honda Side by Side 2017 SXS700M4 AC - PIONEER 700-4 FRONT ARM



Honda Side by Side 2017 SXS700M2D 2AC - PIONEER 700 DELUXE FRONT ARM



Honda Side by Side 2017 SXS700M2 AC - PIONEER 700 FRONT ARM



Honda Side by Side 2017 SXS700M4D AC - PIONEER 700-4 DELUXE FRONT ARM



Honda Side by Side 2017 SXS700M4D 2AC - PIONEER 700-4 DELUXE FRONT ARM



Honda Side by Side 2018 SXS700M2D AC - PIONEER 700 FRONT ARM



Honda Side by Side 2018 SXS700M2 A - PIONEER 700 FRONT ARM



Honda Side by Side 2018 SXS700M2 AC - PIONEER 700 FRONT ARM



Honda Side by Side 2018 SXS700M2D A - PIONEER 700 FRONT ARM



Honda Side by Side 2018 SXS700M4 A - PIONEER 700 FRONT ARM



Honda Side by Side 2018 SXS700M4 AC - PIONEER 700-4 FRONT ARM



Honda Side by Side 2018 SXS700M4D 2AC - PIONEER 700-4 DELUXE FRONT ARM



Honda Side by Side 2018 SXS700M4D 2A - PIONEER 700 FRONT ARM



Honda Side by Side 2018 SXS700M4D A - PIONEER 700 FRONT ARM



Honda Side by Side 2018 SXS700M4D AC - PIONEER 700-4 DELUXE FRONT ARM
